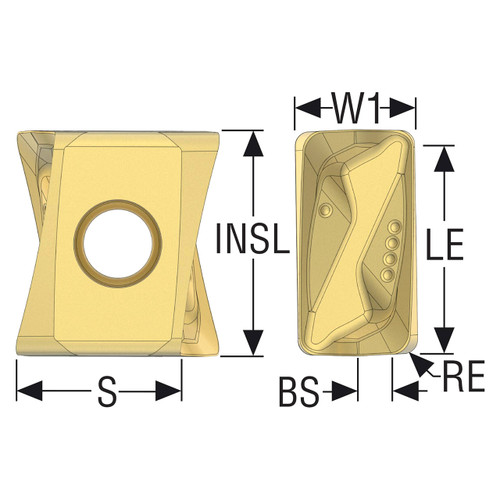

Seco Tools 10198842 | LOEX120708TR-T4-M12 0.80mm Corner Radius x 10.26mm Thickness 4 Cutting Edge Carbide Milling Insert

$32.03
Brand:
Seco Tools
Material:
Carbide
Width (Inch):
13/44"
Width (Decimal Inch):
0.2953"
Width (mm):
7.50mm
Length (Inch):
52/93"
Length (Decimal Inch):
0.5591"
Length (mm):
14.20mm
Thickness (Inch):
21/52"
Thickness (Decimal Inch):
0.4039"
Thickness (mm):
10.26mm
interval quantity:
1
SKU:
23295054
Weight:
0.02 LBS
Shipping:
Calculated at Checkout
Seco Tools 10198842 | LOEX120708TR-T4-M12 0.80mm Corner Radius x 10.26mm Thickness 4 Cutting Edge Carbide Milling Insert

Product Specifications
Manufacturer Part Number10198842
Cutting Edge Effective Length (mm)12.00mm
Wiper Edge Length (mm)2.47mm
Insert Length (mm)14.20mm
Corner Radius (mm)0.80mm
Insert Thickness (mm)10.26mm
Cutting Edge Count4
Insert Rake Angle (Degree)35 Degree
Insert HandRight Hand
Cutting Geometry TypeM
Cutting Geometry Type TechnicalM12
Pocket Seat Code of The CutterLO.X1207
Insert Size And ShapeLOEX1207
Insert Shape CodeL
MaterialCarbide
Product TypeMilling Insert
