Seco Tools 10218135 | ONMU090512TN-M30 0.866" Inscribed Circle Diameter x 0.047" Radius x 0.256" Insert Thickness 16 Cutting Edge CVD Coated Carbide MP2501 Grade ONMU Milling Insert

$53.60 $41.27
(You save $12.33)
Brand:
Seco Tools
Finish/Coating:
CVD
SKU:
23346491
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Seco Tools 10218135 | ONMU090512TN-M30 0.866" Inscribed Circle Diameter x 0.047" Radius x 0.256" Insert Thickness 16 Cutting Edge CVD Coated Carbide MP2501 Grade ONMU Milling Insert

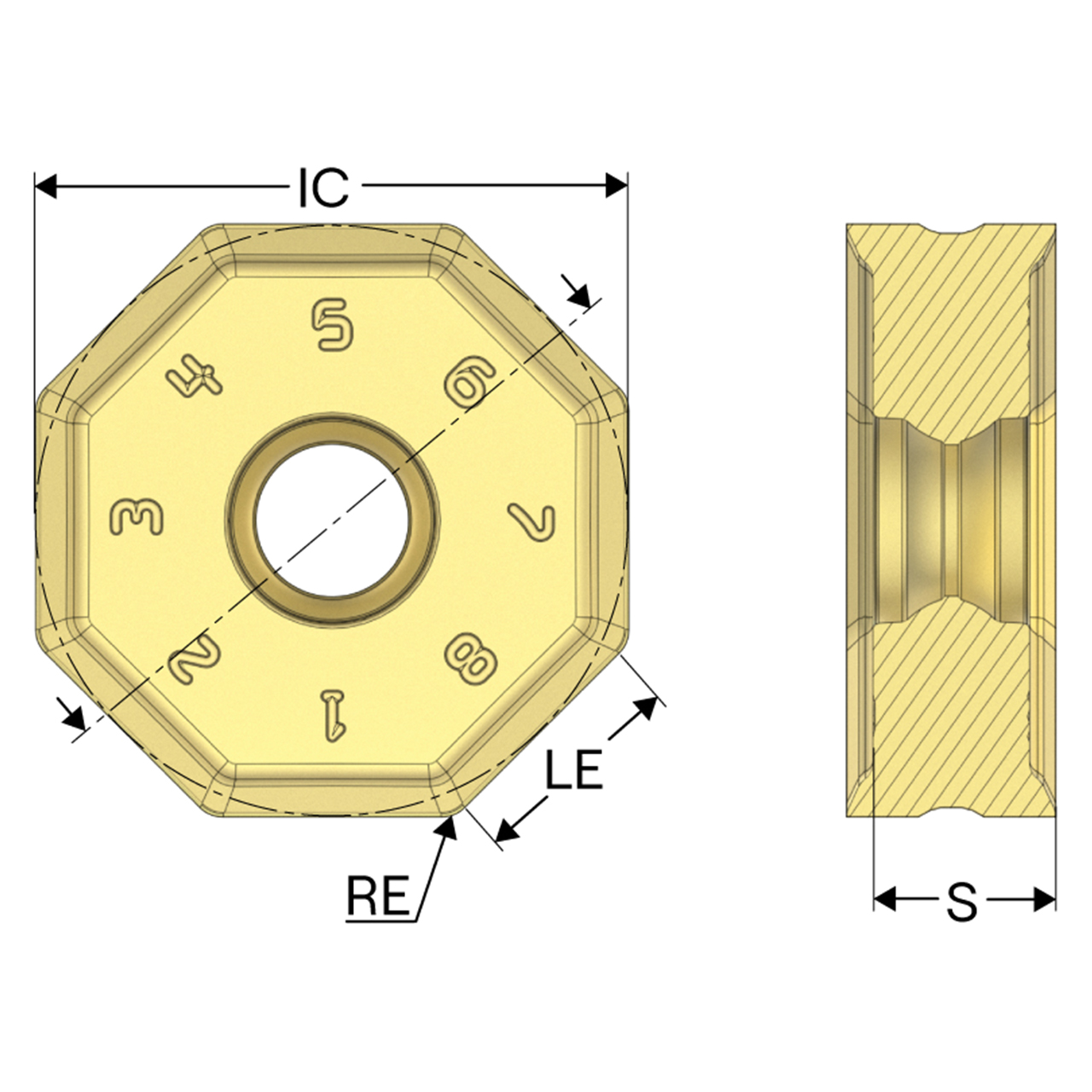

Product Specifications
Manufacturer Part Number10218135
Cutting edge count16
Cutting Geometry Type TechnicalM30
Insert size and shapeONMU0905
Grade TypeCarbide CVD
Inscribed Circle Diameter (Decimal Inch)0.866"
Insert HandNeutral
Cutting Edge Effective Length (Decimal Inch)0.319"
Corner Radius (Decimal Inch)0.047"
Insert Thickness (Decimal Inch)0.256"
Product SeriesONMU
Product TypeMilling Insert
