Product Specifications

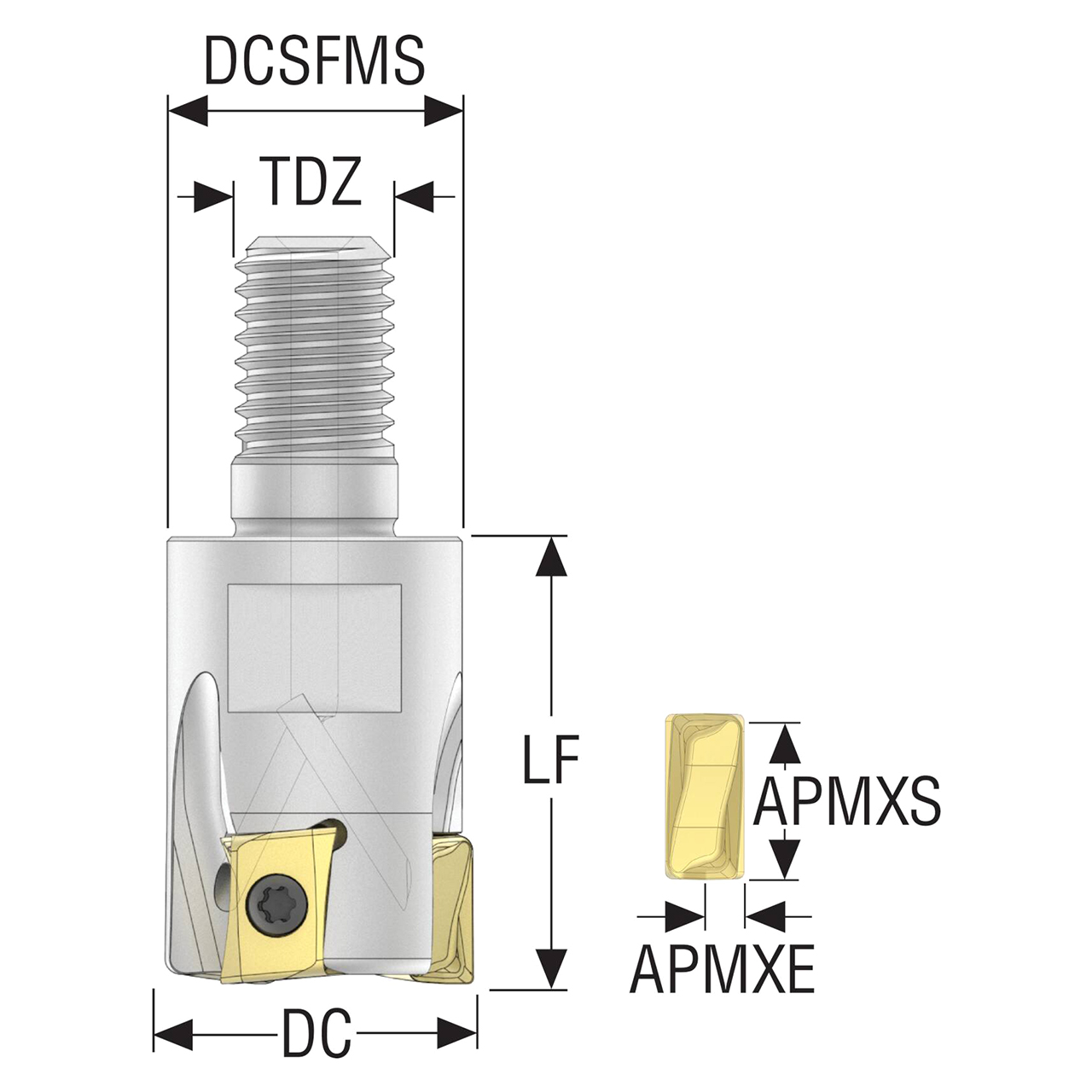

| Manufacturer Part Number | 10225143 |
| Cutting Diameter (mm) | 19.05mm |
| Contact Surface Diameter Machine Side (mm) | 18.50mm |
| Functional Length (mm) | 28.00mm |
| Maximum Depth of Cut (mm) | 8.00mm |
| Connection Mounting Torque (Nm) | 40.0 Nm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -24.5 Degree |
| Rake Orthogonal Angle (Degree) | -24.5 Degree |
| Maximum Rotational Speed (rpm) | 18400 rpm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Differential | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Pocket Seat Code of The Cutter | LOEX0804 |
| Coolant Exit Style Code | 3 |
| Cutting Item Material Type | Steel |
| Shank Type | Combimaster |
| Product Type | Indexable Square-Shoulder End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
19-1/20"
Cutting Diameter (Decimal Inch):
0.7500"
Cutting Diameter (mm):
19.05mm
Shank Type:
Combimaster
interval quantity:
1
