| Manufacturer Part Number | 10260306 |
| Clearance Angle Major (Degree) | 18.00 Degree |
| Wiper Edge Length (Decimal Inch) | 0.059" |
| Cutting edge count | 8 |
| Cutting Geometry Type Technical | ME12 |

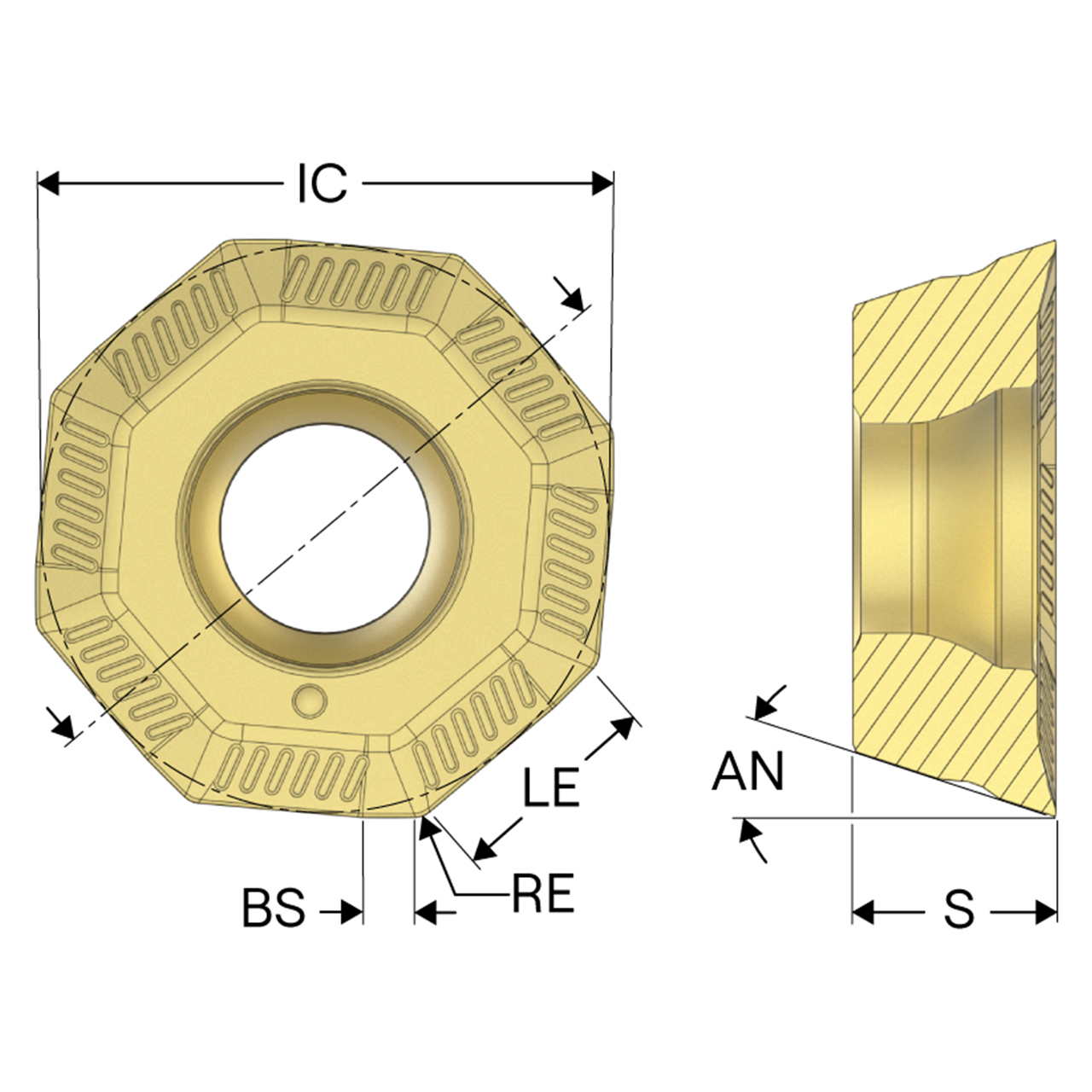

| Insert size and shape | OOET0605 |
| Grade Type | Carbide CVD |
| Inscribed Circle Diameter (Decimal Inch) | 0.622" |
| Insert Hand | Right Hand |
| Cutting Edge Effective Length (Decimal Inch) | 0.177" |
| Corner Radius (Decimal Inch) | 0.024" |
| Insert Thickness (Decimal Inch) | 0.219" |
| Product Series | OOET |
| Product Type | Milling Insert |
