Seco Tools 10270242 | R335.14-217400R.12Z3-M03 21.70mm Cutting Diameter x 4.50mm Cutting Depth Maximum x 0.40mm Radius x 5.70mm Functional Length 3 Cutting Edge PVD Coated Carbide F32M Grade R335.14 Groove Milling Tip Insert

$103.20
Brand:
Seco Tools
Cutting Diameter (mm):
21.70mm
Finish/Coating:
PVD
SKU:
23346904
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Seco Tools 10270242 | R335.14-217400R.12Z3-M03 21.70mm Cutting Diameter x 4.50mm Cutting Depth Maximum x 0.40mm Radius x 5.70mm Functional Length 3 Cutting Edge PVD Coated Carbide F32M Grade R335.14 Groove Milling Tip Insert

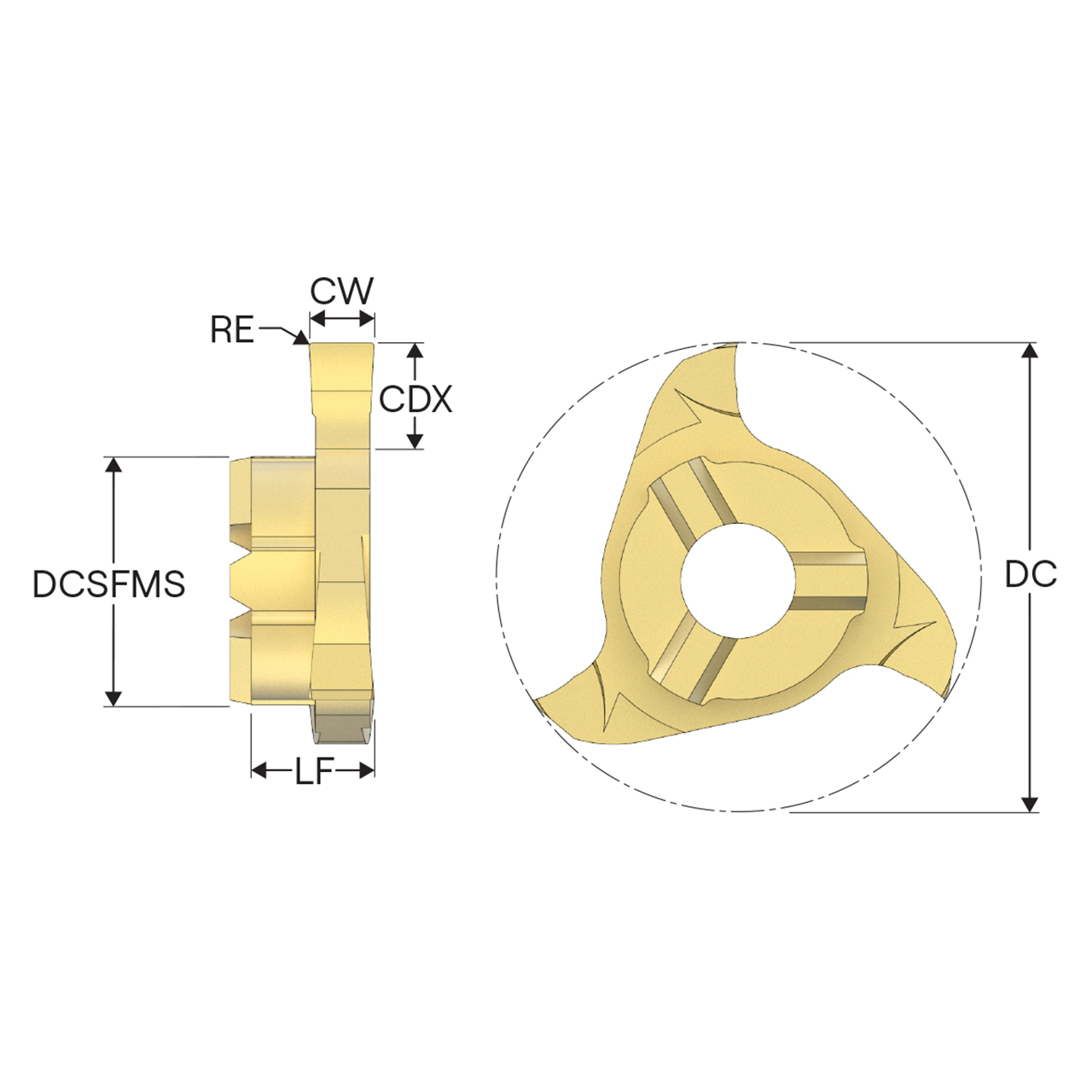

Product Specifications
Manufacturer Part Number10270242
Cutting Diameter (mm)21.70mm
Contact Surface Diameter Machine Side (mm)12.00mm
Insert Rake Angle (Degree)16.00 Degree
Insert Rake Angle (Degree)16.0
Grade TypeCarbide PVD
Cutting DirectionRight Hand
Functional Length (mm)5.70mm
Corner Radius (mm)0.40mm
Peripheral Effective Cutting Edge Count3
Product SeriesR335.14
Product TypeGroove Milling Tip Insert
