Seco Tools 10280457 | T34-PH08B96-5/8-11-22R 0.625" Thread Diameter x 0.480" Shank x 0.418" Tap Length 3 Flute TiAIN+WC/C Coated HSS-E-PM Cylindrical T34 Spiral Point Tap

$144.00 $99.36
(You save $44.64)
Brand:
Seco Tools
Cutting Direction:
Right Hand
Material:
HSS-E-PM
Number of Flutes:
3
Finish/Coating:
TiAIN+WC/C
SKU:
23462764
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

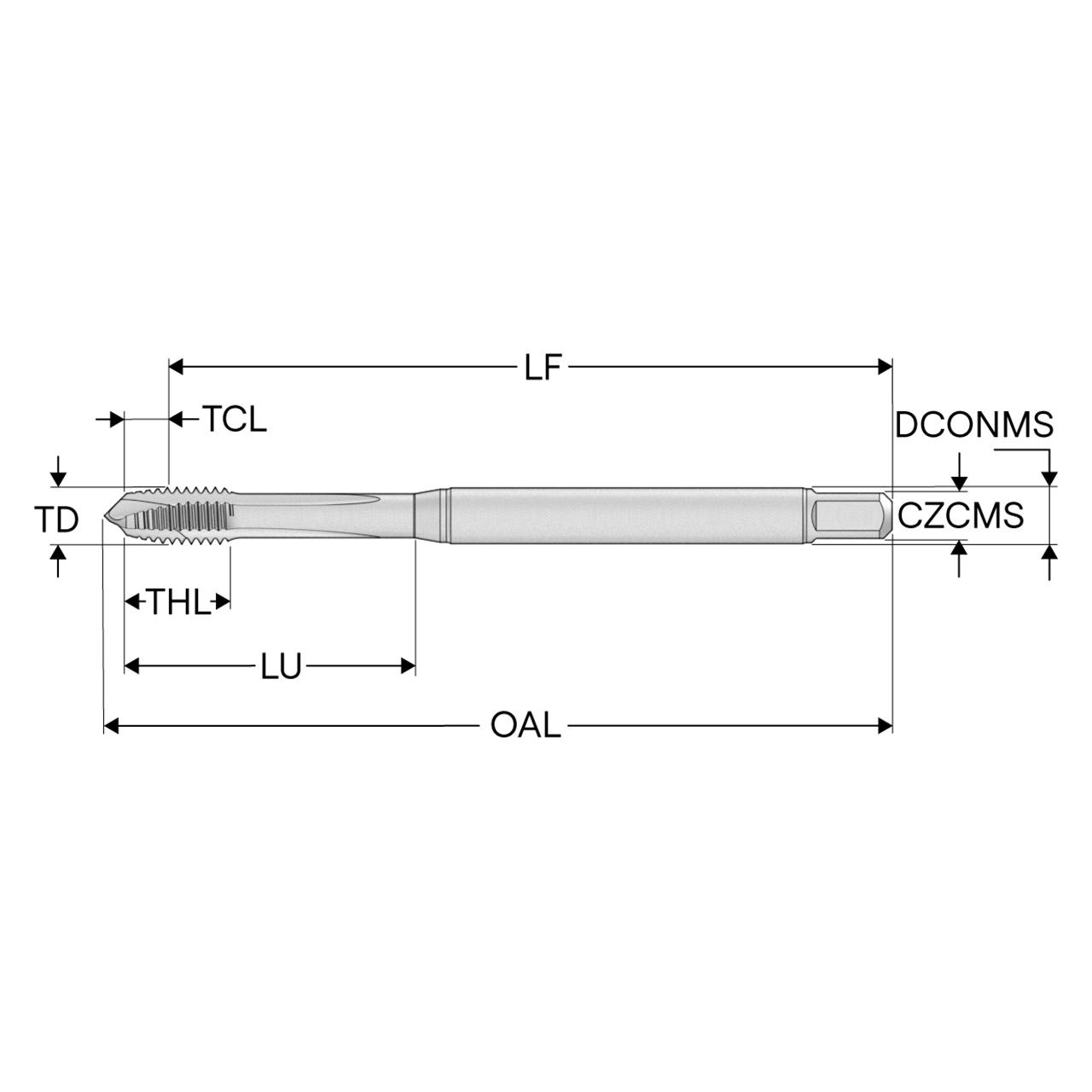

Seco Tools 10280457 | T34-PH08B96-5/8-11-22R 0.625" Thread Diameter x 0.480" Shank x 0.418" Tap Length 3 Flute TiAIN+WC/C Coated HSS-E-PM Cylindrical T34 Spiral Point Tap

Product Specifications
Manufacturer Part Number10280457
CoatingTiAIN+WC/C
Connection Diameter Machine Side (Decimal Inch)0.480"
Shank Diameter (Decimal Inch)0.480"
Cutting DirectionRight Hand
Functional Length (Decimal Inch)3.913"
Usable Length (Decimal Inch)2.590"
MaterialHSS-E-PM
Number of Flutes3
Overall Length (Decimal Inch)4.331"
Recommended Premachined Hole Diameter (Decimal Inch)0.532"
Shank TypeCylindrical
Tap Chamfer Length (Decimal Inch)0.418"
Thread Diameter (Decimal Inch)0.625"
Thread Tolerance Class2BX
Threading Chamfer Length (Decimal Inch)0.418"
Thread Form TypeUNC
Thread Length (Decimal Inch)0.866"
Product SeriesT34
Product TypeSpiral Point Tap
