Seco Tools 10281561 | SPKT10T317TN-ME08 0.394" Inscribed Circle Diameter x 0.067" Radius x 0.156" Insert Thickness 4 Cutting Edge CVD Coated Carbide MP3501 Grade SPKT Milling Insert

$23.30 $17.94
(You save $5.36)
Brand:
Seco Tools
Finish/Coating:
CVD
SKU:
23347034
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Seco Tools 10281561 | SPKT10T317TN-ME08 0.394" Inscribed Circle Diameter x 0.067" Radius x 0.156" Insert Thickness 4 Cutting Edge CVD Coated Carbide MP3501 Grade SPKT Milling Insert

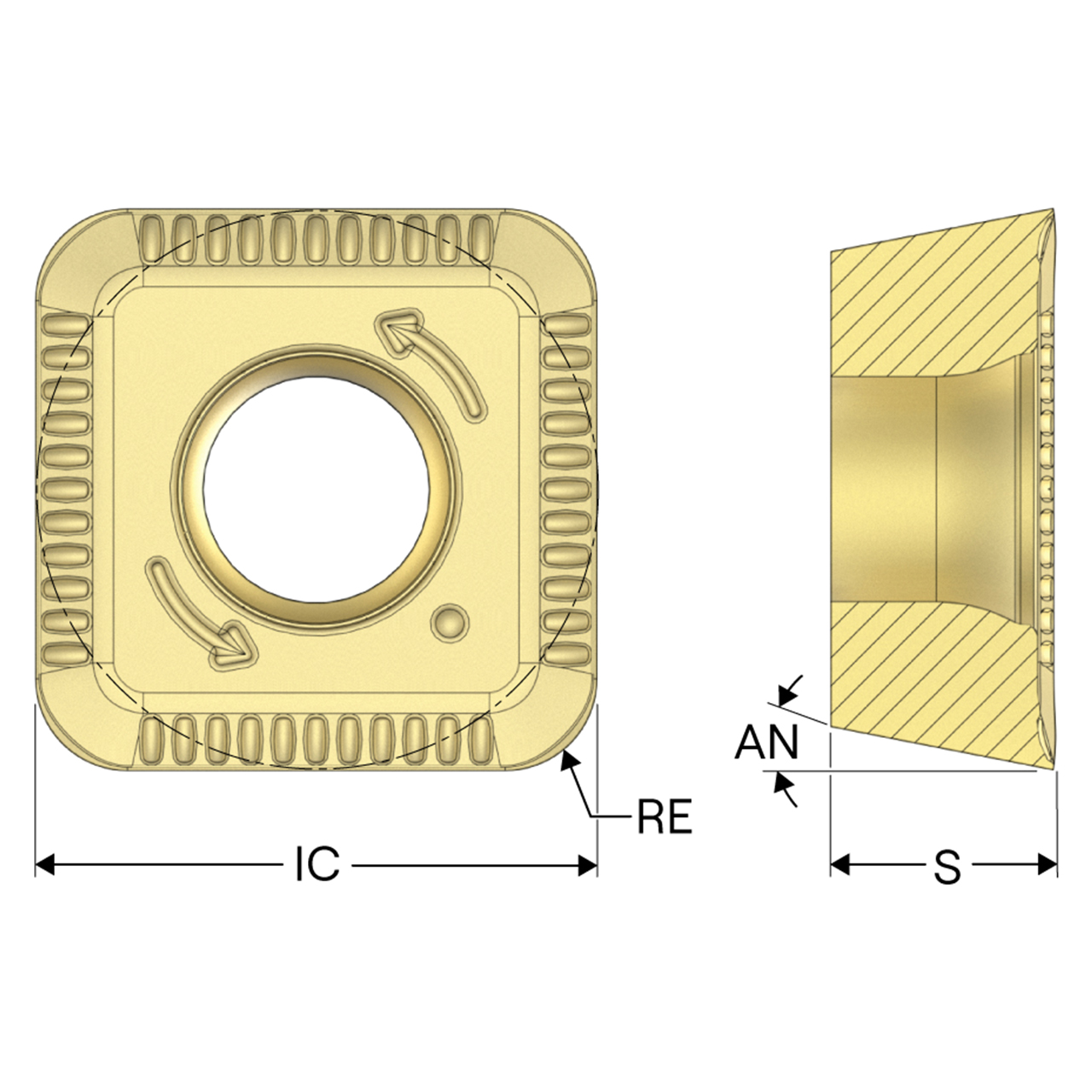

Product Specifications
Manufacturer Part Number10281561
Clearance Angle Major (Degree)11.00 Degree
Cutting edge count4
Cutting Geometry Type TechnicalME08
Insert size and shapeSPKT10T317
Insert Rake Angle (Degree)15.00 Degree
Insert Rake Angle (Degree)15.0
Grade TypeCarbide CVD
Inscribed Circle Diameter (Decimal Inch)0.394"
Insert HandNeutral
Corner Radius (Decimal Inch)0.067"
Insert Thickness (Decimal Inch)0.156"
Insert seat size code10
Product SeriesSPKT
Product TypeMilling Insert
