Product Specifications
| Manufacturer Part Number | 10309657 |
| Machine Side Connection Diameter (Decimal Inch) | 0.236" |
| Shank Diameter (Decimal Inch) | 0.236" |
| Functional length (Decimal Inch) | 3.059" |
| Usable Length (Decimal Inch) | 1.181" |
| Overall Length (Decimal Inch) | 3.236" |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.177" |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.181" |
| Tap Chamfer Length (Decimal Inch) | 0.095" |
| Thread Diameter (Decimal Inch) | 0.216" |
| Thread Diameter Size | UNC 12 - 24 |
| Threading Chamfer Length (Decimal Inch) | 0.095" |
| Thread Length (Decimal Inch) | 0.394" |
| Minimum Threads per Inch (TPI) | 24.00 TPI |
| Maximum Threads per Inch (TPI) | 24.00 TPI |
| Threading Chamfer Type | C |
| Thread Form Type | UNC |
| Connection Size Code | 6.00 x 4.90 |
| Machine Side Connection Size Code | 6.00 x 4.90 |
| Number of Flutes | 3 |
| Basic Standard Group | DIN371 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 2B |
| Helix Angle (Degree) | 40 Degree |
| Cutting Direction | Right Hand |
| Material | High Speed Steel-E |

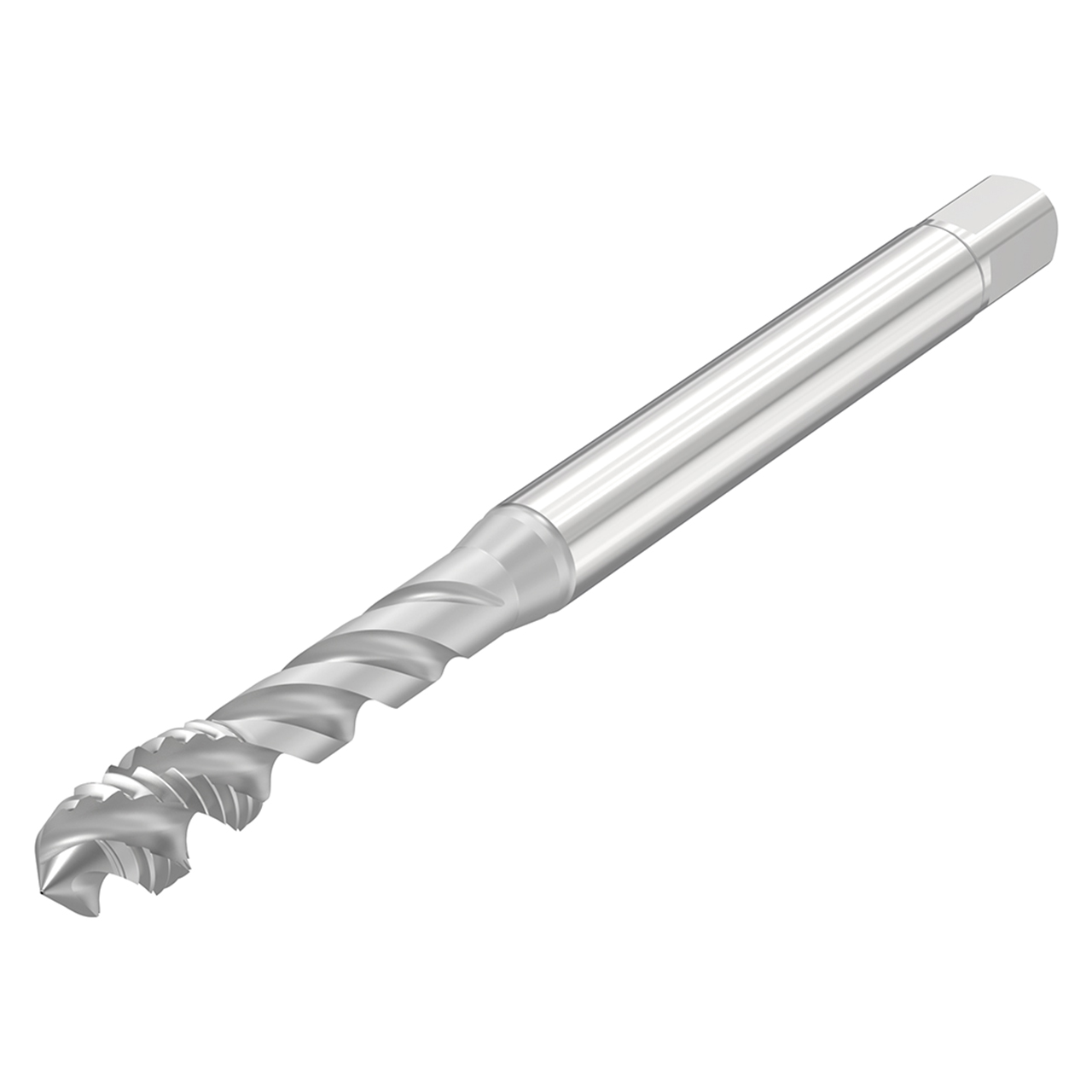

| Product Type | Spiral Flute Tap |
