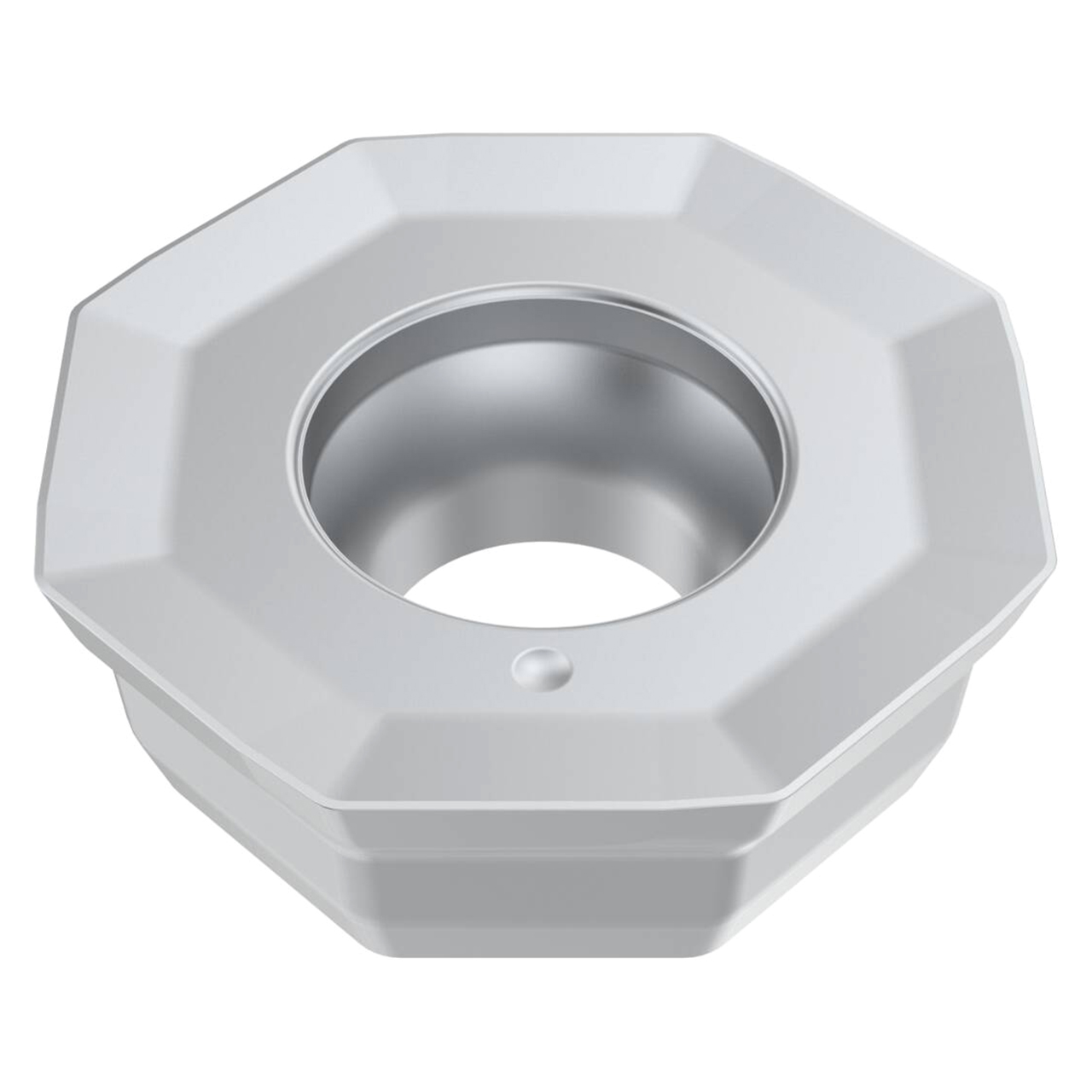

Seco Tools 10312613 | OOMT0605ZZSR-M15 0.622" Circle Diameter x 0.219" Thickness x 0.024" Radius x 18 Degree Clearance Angle 8 Edge Count CVD Coated MK1501 Grade Carbide Milling Insert

$29.40 $22.64
(You save $6.76)
Brand:
Seco Tools
Thickness (Decimal Inch):
0.2189"
Finish/Coating:
CVD
Material:
Carbide
interval quantity:
1
SKU:
23462348
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Seco Tools 10312613 | OOMT0605ZZSR-M15 0.622" Circle Diameter x 0.219" Thickness x 0.024" Radius x 18 Degree Clearance Angle 8 Edge Count CVD Coated MK1501 Grade Carbide Milling Insert

Product Specifications
Manufacturer Part Number10312613
Wiper Edge Length (Decimal Inch)0.059"
Inscribed Circle Diameter (Decimal Inch)0.622"
Cutting Edge Effective Length (Decimal Inch)0.177"
Corner Radius (Decimal Inch)0.024"
Insert Thickness (Decimal Inch)0.219"
Insert Size and ShapeOOMT0605
Cutting Edge Count8
Cutting Geometry Type TechnicalM15
GradeMK1501
Grade typeCarbide CVD
Insert HandRight Hand
Clearance Angle (Degree)18 Degree
CoatingCVD
MaterialCarbide
Product TypeMilling Insert
