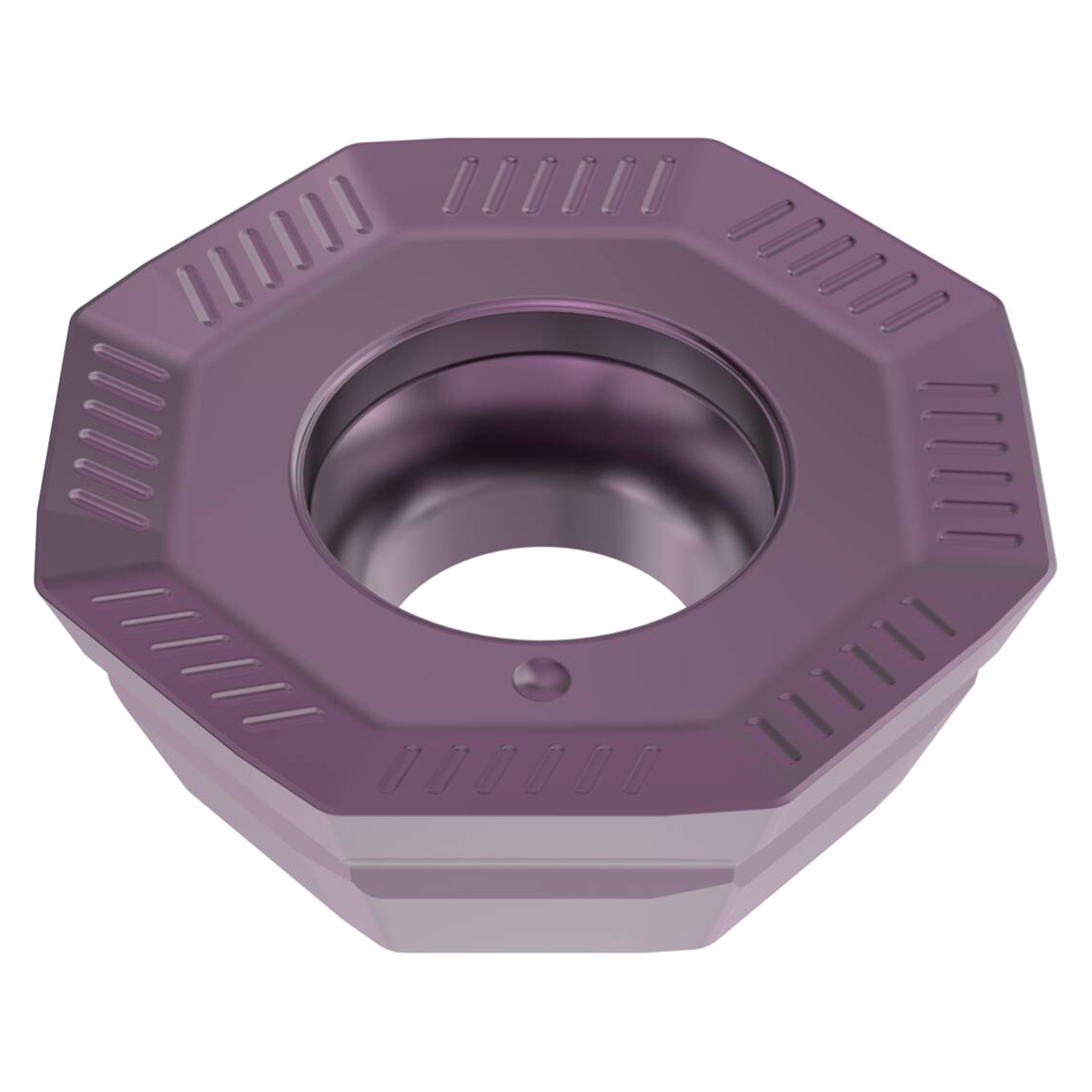

Seco Tools 10321726 | OOET0605ZZSR-ME12 0.622" Circle Diameter x 0.219" Thickness x 0.024" Radius x 18 Degree Clearance Angle 8 Edge Count PVD Coated MP2051 Grade Carbide Milling Insert

$35.80 $27.57
(You save $8.23)
Brand:
Seco Tools
Thickness (Decimal Inch):
0.2189"
Finish/Coating:
PVD
Material:
Carbide
interval quantity:
1
SKU:
23462409
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Seco Tools 10321726 | OOET0605ZZSR-ME12 0.622" Circle Diameter x 0.219" Thickness x 0.024" Radius x 18 Degree Clearance Angle 8 Edge Count PVD Coated MP2051 Grade Carbide Milling Insert

Product Specifications
Manufacturer Part Number10321726
Wiper Edge Length (Decimal Inch)0.059"
Inscribed Circle Diameter (Decimal Inch)0.622"
Cutting Edge Effective Length (Decimal Inch)0.177"
Corner Radius (Decimal Inch)0.024"
Insert Thickness (Decimal Inch)0.219"
Insert Size and ShapeOOET0605
Cutting Edge Count8
Cutting Geometry Type TechnicalME12
GradeMP2051
Grade typeCarbide PVD
Insert HandRight Hand
Clearance Angle (Degree)18 Degree
CoatingPVD
MaterialCarbide
Product TypeMilling Insert
