| Manufacturer Part Number | 10321783 |
| Wiper Edge Length (Decimal Inch) | 0.071" |
| Inscribed Circle Diameter (Decimal Inch) | 0.625" |
| Cutting Edge Length (Decimal Inch) | 0.625" |
| Cutting Edge Effective Length (Decimal Inch) | 0.406" |
| Corner Radius (Decimal Inch) | 0.059" |
| Insert Thickness (Decimal Inch) | 0.219" |
| Insert Size and Shape | SEEX1505 |
| Cutting Edge Count | 4 |
| Cutting Geometry Type Technical | M12 |
| Grade | MP2051 |
| Grade type | Carbide PVD |
| Insert Hand | Neutral |
| Clearance Angle (Degree) | 20 Degree |
| Coating | PVD |
| Material | Carbide |

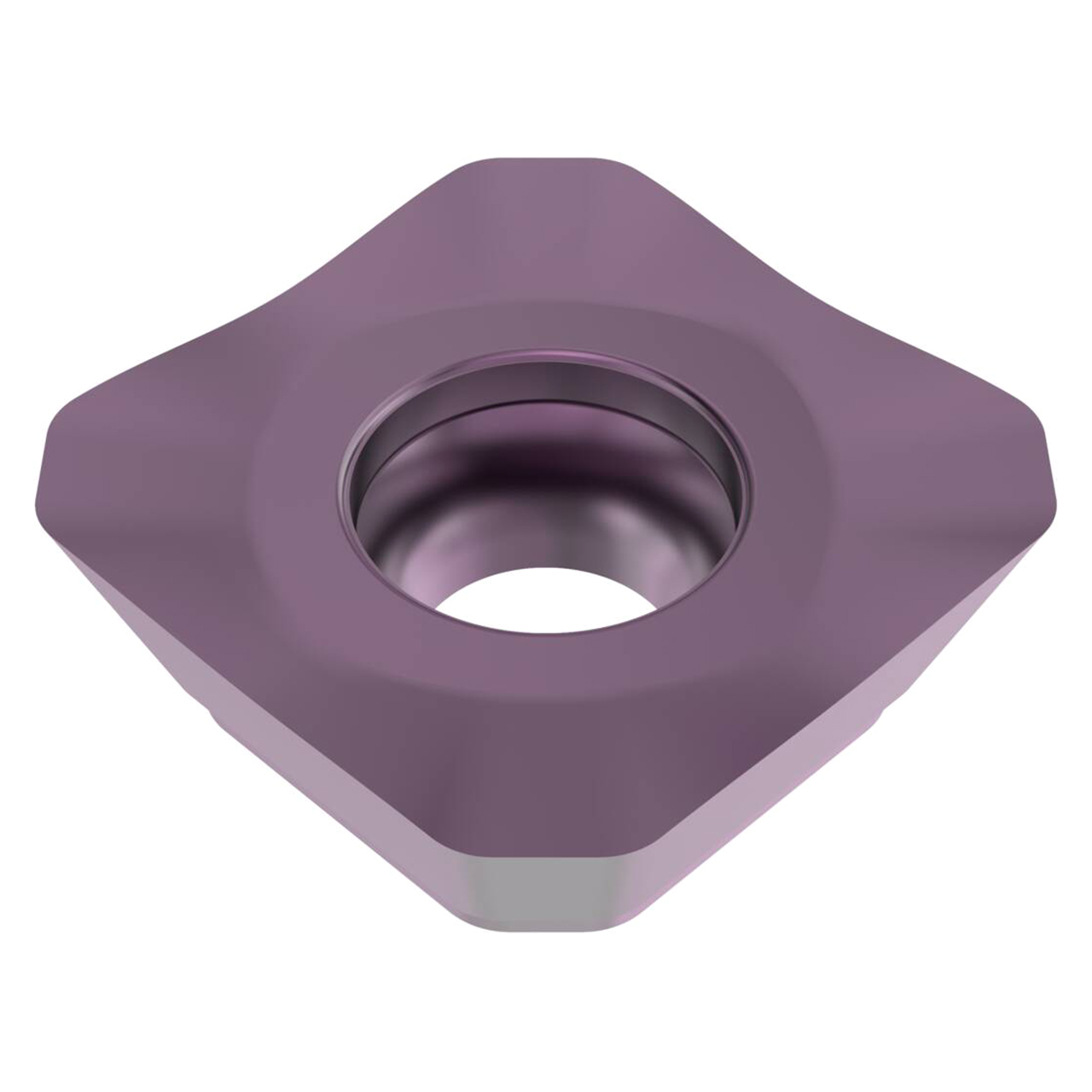

| Product Type | Milling Insert |
