Seco Tools 10325097 | SPKT180630TN-MD16 0.709" Circle Diameter x 0.250" Thickness x 0.118" Radius x 11 Degree Clearance Angle 4 Edge Count PVD Coated MH1051 Grade Carbide Milling Insert

$38.00 $29.26
(You save $8.74)
Brand:
Seco Tools
Material:
Carbide
Finish/Coating:
PVD
Inscribed Circle (Decimal Inch):
0.7087"
Thickness (Decimal Inch):
0.2500"
interval quantity:
1
SKU:
23462465
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Seco Tools 10325097 | SPKT180630TN-MD16 0.709" Circle Diameter x 0.250" Thickness x 0.118" Radius x 11 Degree Clearance Angle 4 Edge Count PVD Coated MH1051 Grade Carbide Milling Insert

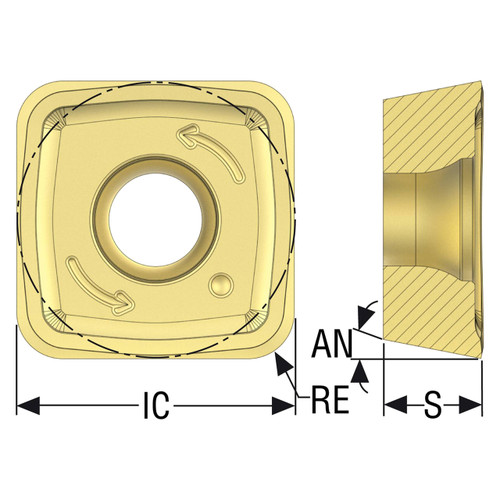

Product Specifications
Manufacturer Part Number10325097
Inscribed Circle Diameter (Decimal Inch)0.709"
Cutting Edge Length (Decimal Inch)0.709"
Corner Radius (Decimal Inch)0.118"
Insert Thickness (Decimal Inch)0.250"
Insert Size and ShapeSPKT180630
Cutting Edge Count4
Cutting Geometry Type TechnicalMD16
GradeMH1051
Grade typeCarbide PVD
Insert Seat Size Code18
Insert HandNeutral
Insert Rake Angle (Degree)5 Degree
Clearance Angle (Degree)11 Degree
CoatingPVD
MaterialCarbide
Product TypeMilling Insert
