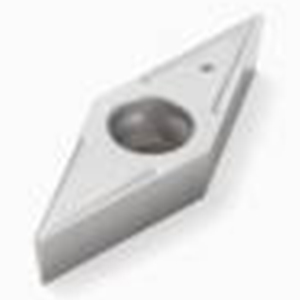

Seco Tools 74016024 | VBMT160408-F2 VB1604 Insert Size x 9.53mm Inscribed Circle Diameter x 0.80mm Corner Radius 2 Cutting Edge Uncoated Turning Insert

$14.21
Brand:
Seco Tools
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.53mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0320"
Corner Radius (mm):
0.80mm
interval quantity:
1
SKU:
23289383
Weight:
0.02 LBS
Shipping:
Calculated at Checkout
Seco Tools 74016024 | VBMT160408-F2 VB1604 Insert Size x 9.53mm Inscribed Circle Diameter x 0.80mm Corner Radius 2 Cutting Edge Uncoated Turning Insert

Product Specifications
Manufacturer Part Number74016024
Inscribed Circle Diameter (Decimal Inch)0.375"
Inscribed Circle Diameter (mm)9.53mm
Fixing Hole Diameter (Decimal Inch)0.177"
Fixing Hole Diameter (mm)4.50mm
Corner Radius (Decimal Inch)0.032"
Corner Radius (mm)0.80mm
Cutting Edge Effective Length (Decimal Inch)0.575"
Cutting Edge Effective Length (mm)14.60mm
Theoretical Cutting Edge Length (Decimal Inch)0.654"
Theoretical Cutting Edge Length (mm)16.61mm
Insert Thickness (Decimal Inch)0.187"
Insert Thickness (mm)4.76mm
Clearance Angle Major (Degree)5 Degree
Cutting Edge Count2
Insert Size And ShapeVB1604
Insert Included Angle (Degree)35 Degree
MaterialCarbide
Insert HandNeutral
Insert Shape CodeV
Product TypeTurning Insert

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Seco Tools
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.53mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0320"
Corner Radius (mm):
0.80mm
interval quantity:
1
