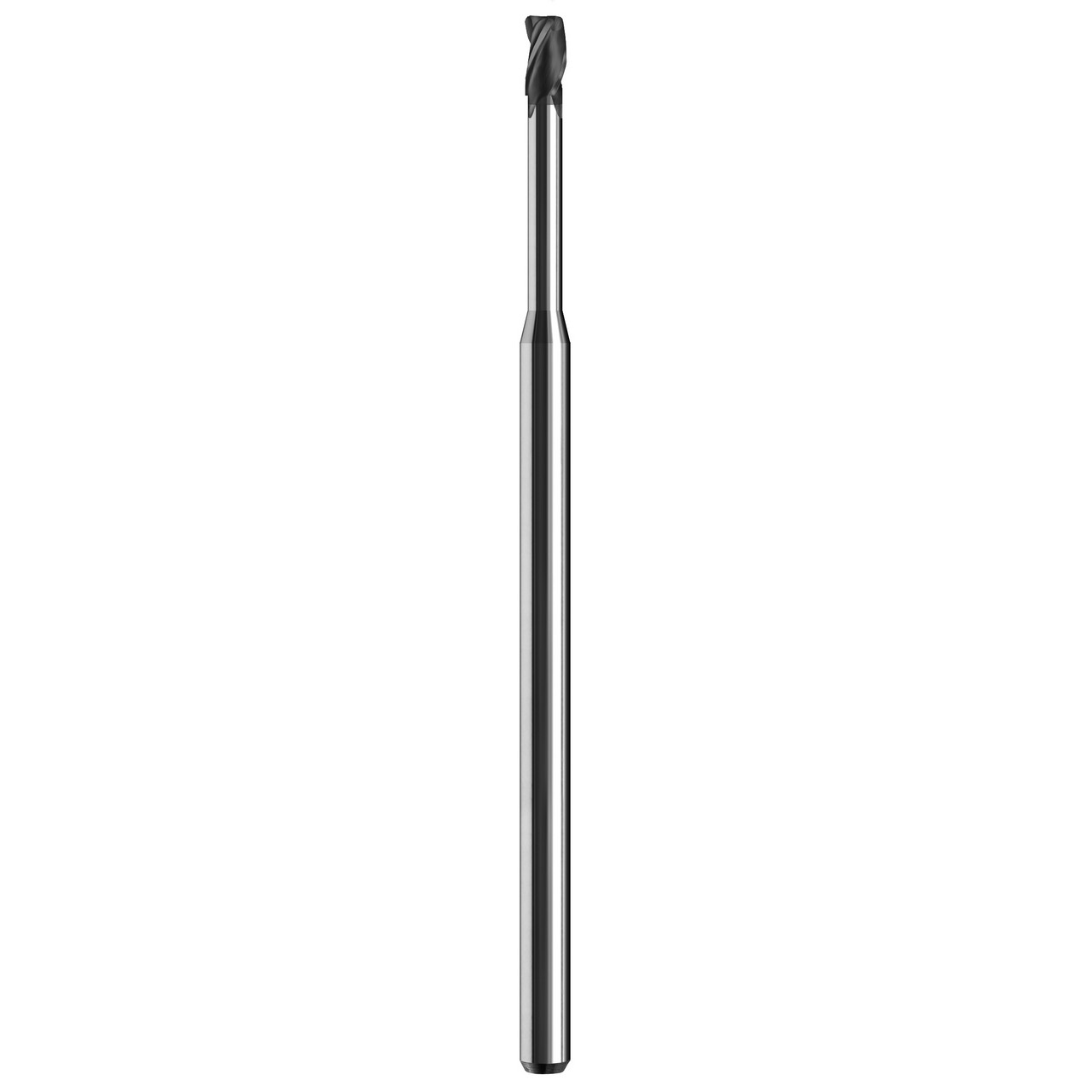

SGS 04317 | 0.100" Diameter x 0.125" Shank x 0.300" LOC x 2.500" OAL 3 Flute AlTiN Coated Square End Mill

$44.96 $29.22
(You save $15.74)
Brand:
SGS
Finish/Coating:
TA
Length of Cut (Inch):
19/64"
Length of Cut (Decimal Inch):
0.3000"
Length of Cut (mm):
7.62mm
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Helix Angle:
30 Degree
Cutting Direction:
RHC
SKU:
25192080
UPC:
Weight:
0.02 LBS
Shipping:
Calculated at Checkout
Features:
  • Three flute design features improved chip space over four flutes and increased strength and feed capability over two flutes
  • Proprietary coating allows for superior chip flow, driving industry leading productivity and value, even at low spindle speeds
  • High performance carbide substrate designed specifically for Micro Tool applications
  • Broad portfolio, offering consistent lengths of cut, to ensure application demands are met
  • Advanced geometries that extend tool life, reduce chatter, cut cycle times, and improve part quality
  • All micro tools are manufactured in accordance with the KSPT ISO certified quality procedures

Product Specifications
Cutting Diameter (Inch)0.100"
Shank Diameter (Inch)0.125"
Length of Cut (Inch)0.300"
Overall Length (Inch)2.500"
Shank Length (Inch)1.300"
Cut of DirectionRight Hand
Flute TypeSpiral
Cleared Length (Inch)0.300"
Reach (Inch)1.200"
Helix Angle30 Degree
CoatingAlTiN
Number of Flutes3

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
