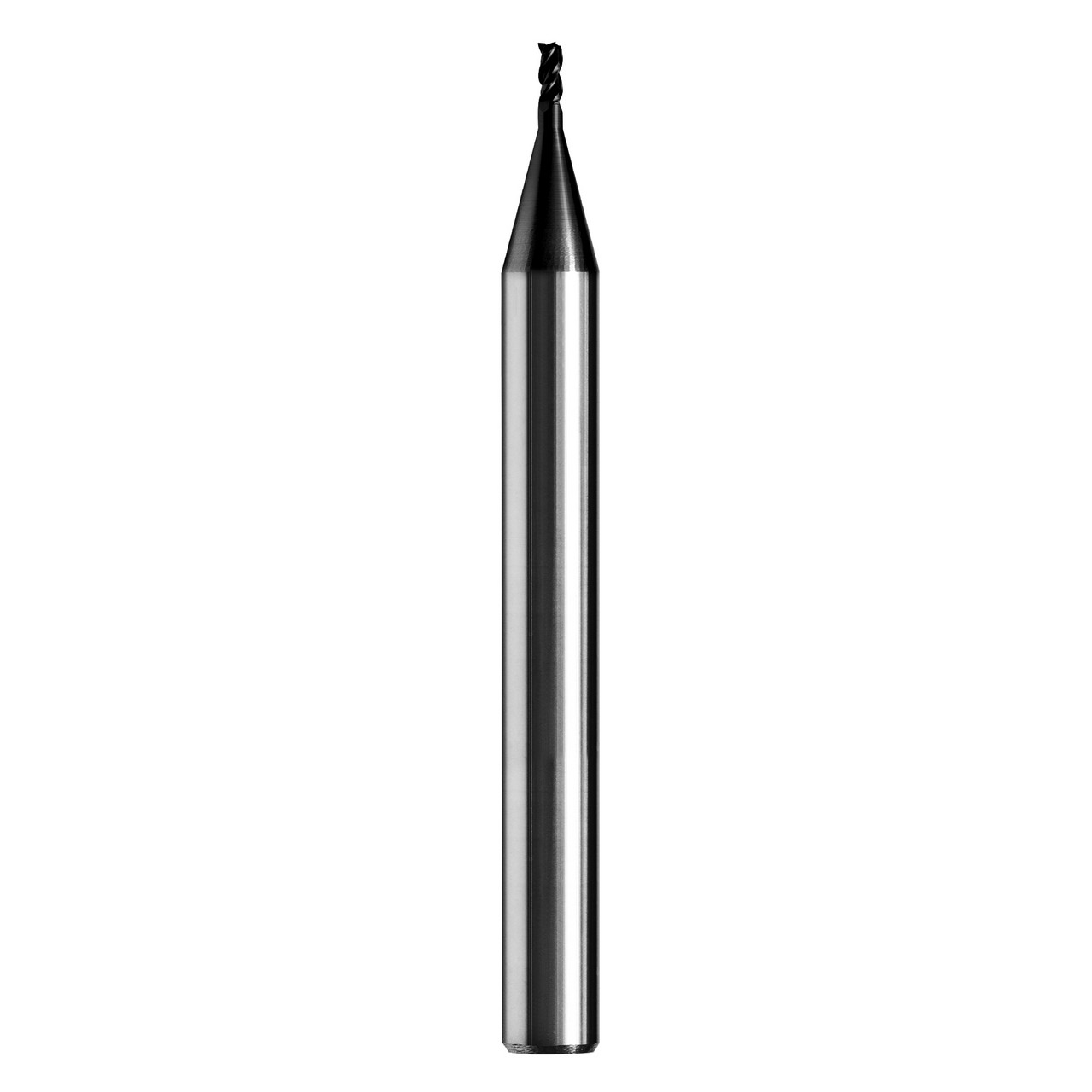

SGS 05288 | 5/64" Diameter x 1/4" Shank x 9/64" LOC x 2-1/2" OAL 3 Flute AlTiN Coated Corner Radius End Mill

$18.22
Brand:
SGS
Number of Flutes:
3
End Type:
Corner Radius
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0100"
Corner Radius (mm):
0.25mm
Length of Cut (Inch):
9/64"
Length of Cut (Decimal Inch):
0.1400"
Length of Cut (mm):
3.56mm
Finish/Coating:
TA
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Cutting Direction:
RHC
SKU:
25192501
Weight:
0.07 LBS
Shipping:
Calculated at Checkout

Features

  • Variable helix design improves stability, extends tool life, and improves part quality in challenging applications
  • Reinforced shank maximizes rigidity, especially in applications requiring additional tool extension
  • Proprietary coating allows for superior chip flow, driving industry leading productivity and value, even at low spindle speeds
  • Application specific sub-micron grain carbide designed specifically for micro-tool applications
  • Manufactured in accordance with KSPT ISO certified quality procedures

Product Specifications
Cutting Diameter (Inch)5/64"
Shank Diameter (Inch)1/4"
Length of Cut (Inch)9/64"
Overall Length (Inch)2-1/2"
Cut of DirectionRight Hand
Flute TypeSpiral
Corner Radius (Inch)0.01"
Helix Angle35-45 Degree
CoatingAlTiN
Number of Flutes3
