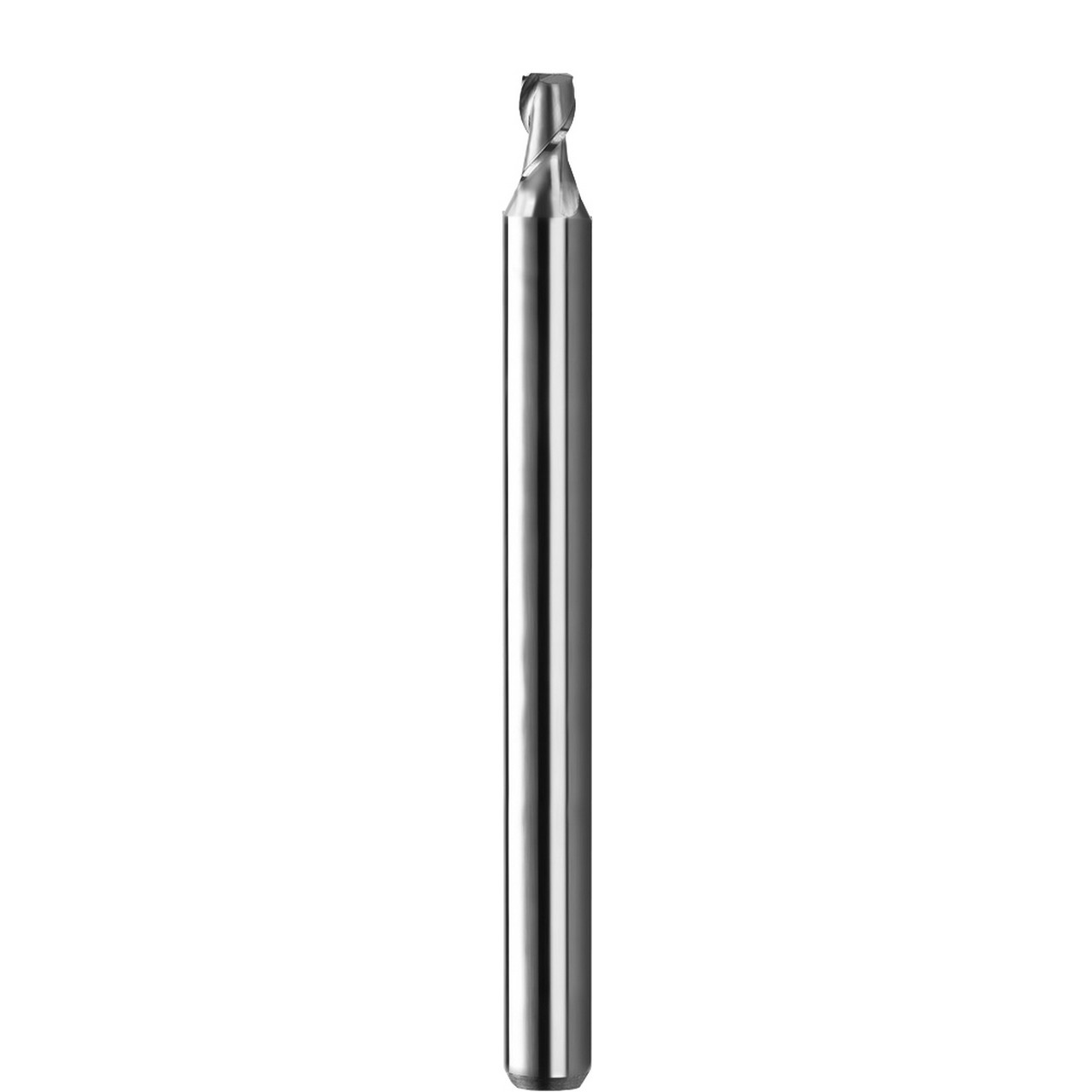

SGS 08582 | 0.090" Diameter x 0.125" Shank x 0.270" LOC x 1.500" OAL 2 Flute Uncoated Corner Radius End Mill

$12.19
Brand:
SGS
Number of Flutes:
2
End Type:
Corner Radius
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0200"
Corner Radius (mm):
0.51mm
Length of Cut (Inch):
17/64"
Length of Cut (Decimal Inch):
0.2700"
Length of Cut (mm):
6.86mm
Finish/Coating:
UN
Shank Diameter (Inch):
1.4961"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.1mm
Cutting Direction:
RHC
SKU:
25192667
UPC:
691781085821
Weight:
0.01 LBS
Shipping:
Calculated at Checkout

Features:

  • Two flute design is ideal for softer alloyed, non-ferrous material applications that require slotting or involve heavy chip loads
  • Enhanced corner geometry with tight tolerance corner radius
  • Proprietary coating allows for superior chip flow, driving industry leading productivity and value, even at low spindle speeds
  • High performance carbide substrate designed specifically for Micro Tool applications
  • Broad portfolio, offering consistent lengths of cut, to ensure application demands are met
  • Advanced geometries that extend tool life, reduce chatter, cut cycle times, and improve part quality
  • All tools in stock to meet customer order requirements
  • All micro tools are manufactured in accordance with the KSPT ISO certified quality procedures

Product Specifications
Cutting Diameter (Inch)0.090"
Shank Diameter (Inch)0.125"
Length of Cut (Inch)0.270"
Overall Length (Inch)1.500"
Shank Length (Inch)1.230"
Cut of DirectionRight Hand
Flute TypeSpiral
Cleared Length (Inch)0.270"
Corner Radius (Inch)0.020"
Helix Angle30 Degree
CoatingUncoated
Number of Flutes2
