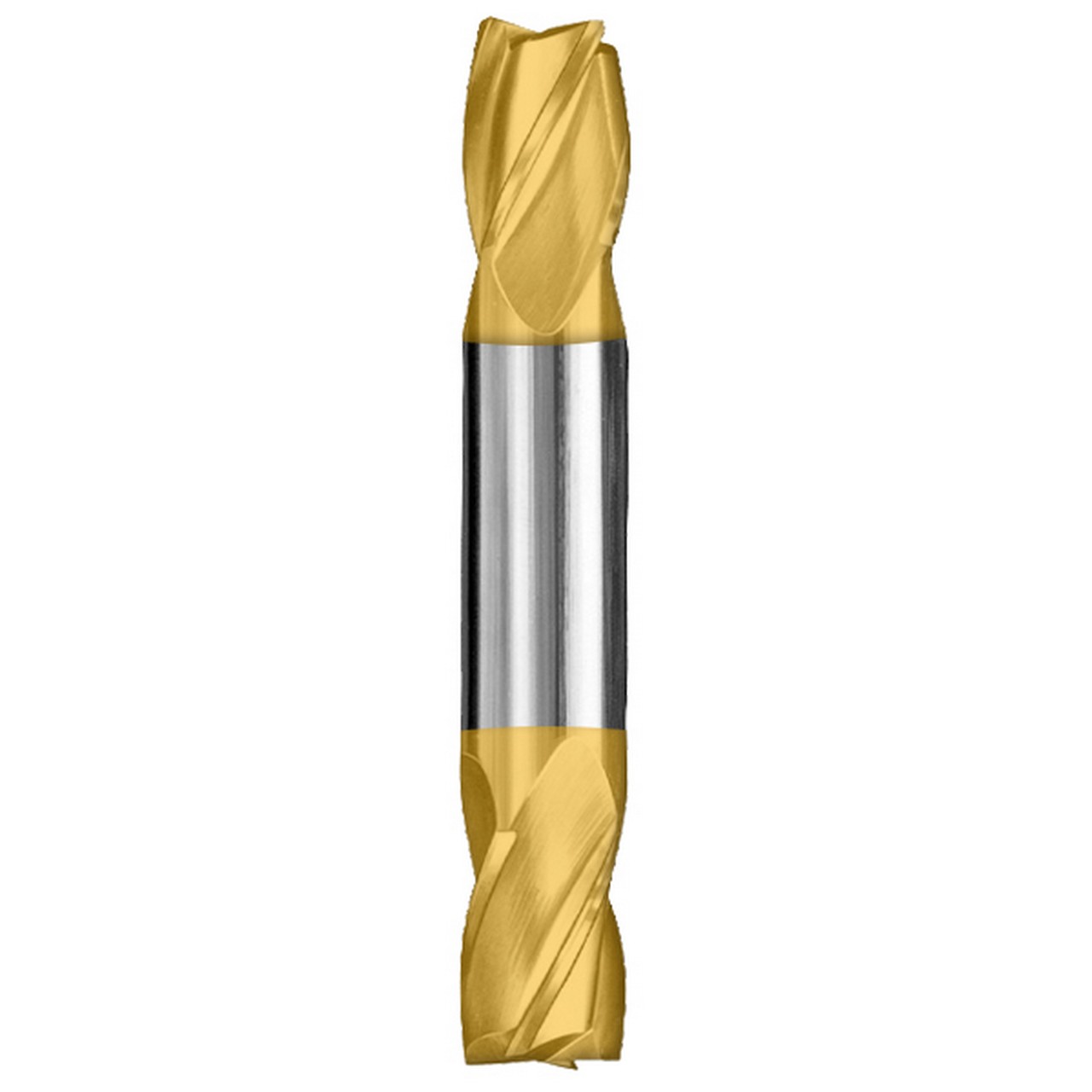

SGS 31447 | 5/64" Diameter x 1/8" Shank x 1/8" LOC x 1-1/2" OAL 4 Flute TiN Coated Square End Mill

$15.16
Brand:
SGS
Number of Flutes:
4
Length of Cut (Inch):
1/8"
Length of Cut (Decimal Inch):
0.1250"
Length of Cut (mm):
3.18mm
Finish/Coating:
TN
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.1mm
Helix Angle:
30 Degree
Cutting Direction:
RHC
SKU:
25194780
Weight:
0.01 LBS
Shipping:
Calculated at Checkout

Product Specifications
Cutting Diameter (Inch)5/64"
Shank Diameter (Inch)1/8"
Length of Cut (Inch)1/8"
Overall Length (Inch)1-1/2"
Shank Length (Inch)1.375"
Cut of DirectionRight Hand
Flute TypeSpiral
Helix Angle30 Degree
CoatingTiN
Number of Flutes4
