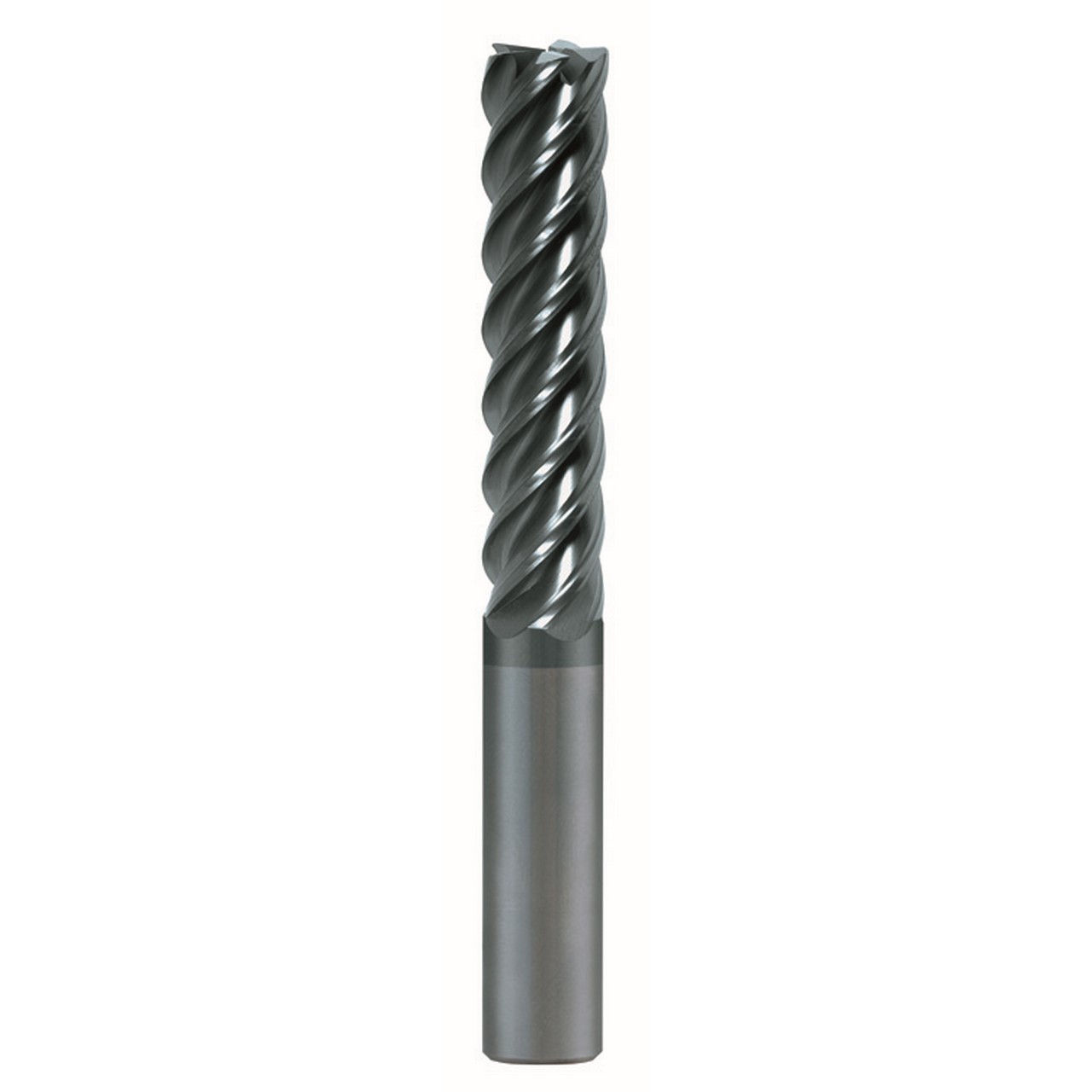

SGS 32675 | 5/16" Diameter x 5/16" Shank x 7/16" LOC x 2" OAL 5 Flute AlTiN Coated Square End Mill

$29.54
Brand:
SGS
Number of Flutes:
5
Length of Cut (Inch):
7/16"
Length of Cut (Decimal Inch):
0.4375"
Length of Cut (mm):
11.11mm
Finish/Coating:
TA
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Shank Diameter (mm):
7.94mm
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.8mm
Helix Angle:
45 Degree
Cutting Direction:
RHC
SKU:
25195520
UPC:
691781326757
Weight:
0.08 LBS
Shipping:
Calculated at Checkout

Features:

  • Unequal indexing, high helix and an ideal rake and relief combination for unmatched finishing capability
  • The choice when peak finish quality is the requirement
  • Enhanced corner geometry with tight tolerance corner radius
  • Recommended for materials ≤ 45 HRC (≤ 420 BHN)

Product Specifications
Cutting Diameter (Inch)5/16"
Shank Diameter (Inch)5/16"
Length of Cut (Inch)7/16"
Overall Length (Inch)2"
Shank Length (Inch)1.5625"
Cut of DirectionRight Hand
Flute TypeSpiral
Helix Angle45 Degree
CoatingAlTiN
Number of Flutes5

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
SGS
Number of Flutes:
5
Length of Cut (Inch):
7/16"
Length of Cut (Decimal Inch):
0.4375"
Length of Cut (mm):
11.11mm
Finish/Coating:
TA
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Shank Diameter (mm):
7.94mm
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.8mm
Helix Angle:
45 Degree
Cutting Direction:
RHC
