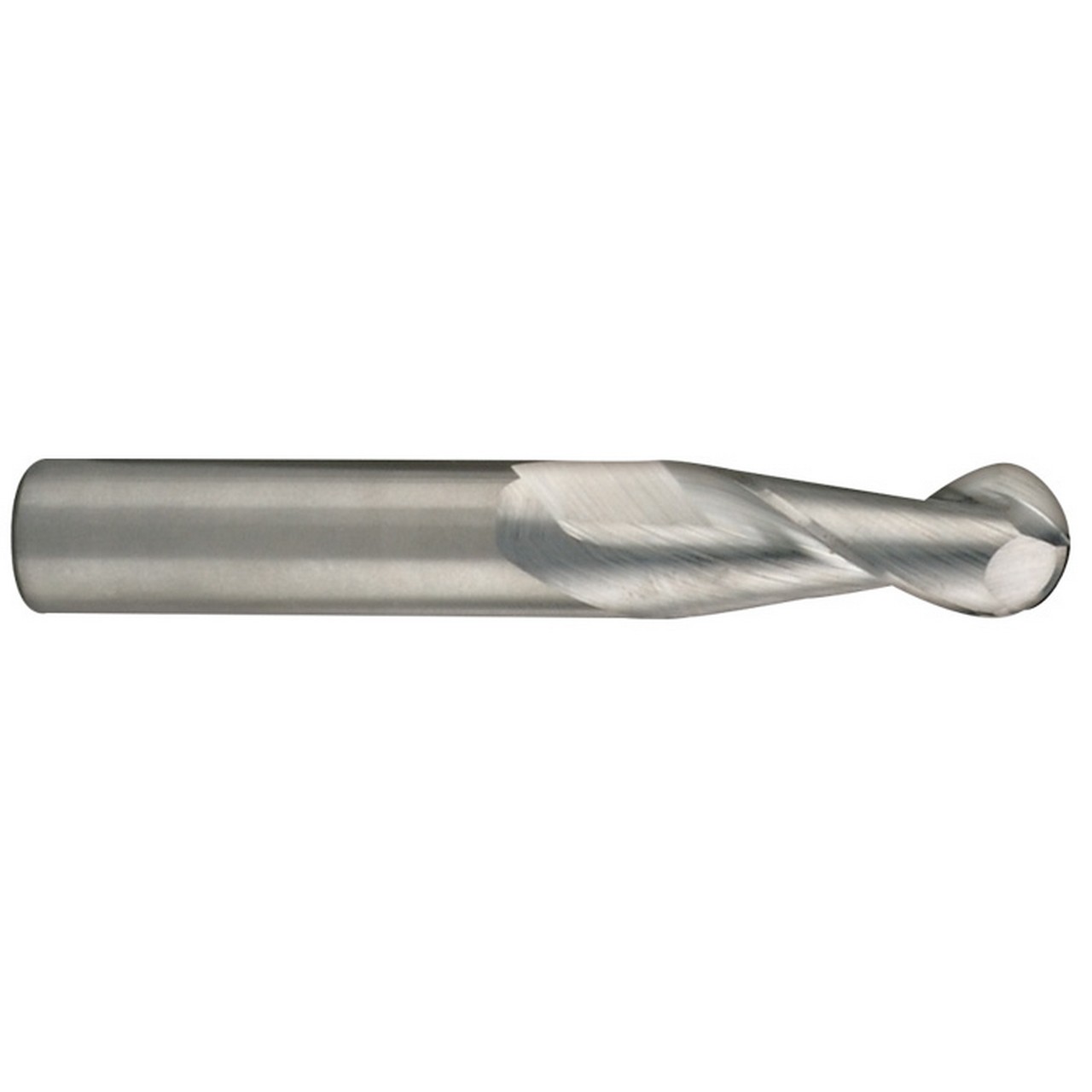

SGS 34677 | 1.000" Diameter x 1.000" Shank x 2.000" LOC x 4.500" OAL 2 Flute TiB2 Coated Ball End Mill

$321.15
Brand:
SGS
Number of Flutes:
2
Length of Cut (Inch):
2"
Length of Cut (Decimal Inch):
2.0000"
Length of Cut (mm):
50.8mm
Overall Length (Inch):
4-1/2"
Overall Length (Decimal Inch):
4.5000"
Overall Length (mm):
114.3mm
Shank Diameter (Inch):
1"
Shank Diameter (Decimal Inch):
1.0000"
Shank Diameter (mm):
25.4mm
Finish/Coating:
TB
Cutting Direction:
RHC
Helix Angle (Degree):
35 Degree
SKU:
25196064
UPC:
691781346779
Weight:
1.38 LBS
Shipping:
Free Shipping

Features:

  • Circular land reduces edge aggressiveness for varied speed and feed rates
  • 2 Flutes effectively manage the large size and volume of chips produced during the aggressive machining process
  • Excellent balance at high speeds and aggressive plunging capability
  • Ball nose design ideal for finishing operations in complex workpieces
  • Recommended for materials ≤ 150 BHN (≤ 7 HRC)

Product Specifications
Cutting Diameter (Inch)1.000"
Shank Diameter (Inch)1.000"
Length of Cut (Inch)2.000"
Overall Length (Inch)4.500"
Shank Length (Inch)2.500"
Cut of DirectionRight Hand
Flute TypeSpiral
Helix Angle35 Degree
CoatingTiB2
Number of Flutes2

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
SGS
Number of Flutes:
2
Length of Cut (Inch):
2"
Length of Cut (Decimal Inch):
2.0000"
Length of Cut (mm):
50.8mm
Overall Length (Inch):
4-1/2"
Overall Length (Decimal Inch):
4.5000"
Overall Length (mm):
114.3mm
Shank Diameter (Inch):
1"
Shank Diameter (Decimal Inch):
1.0000"
Shank Diameter (mm):
25.4mm
Finish/Coating:
TB
Cutting Direction:
RHC
Helix Angle (Degree):
35 Degree
