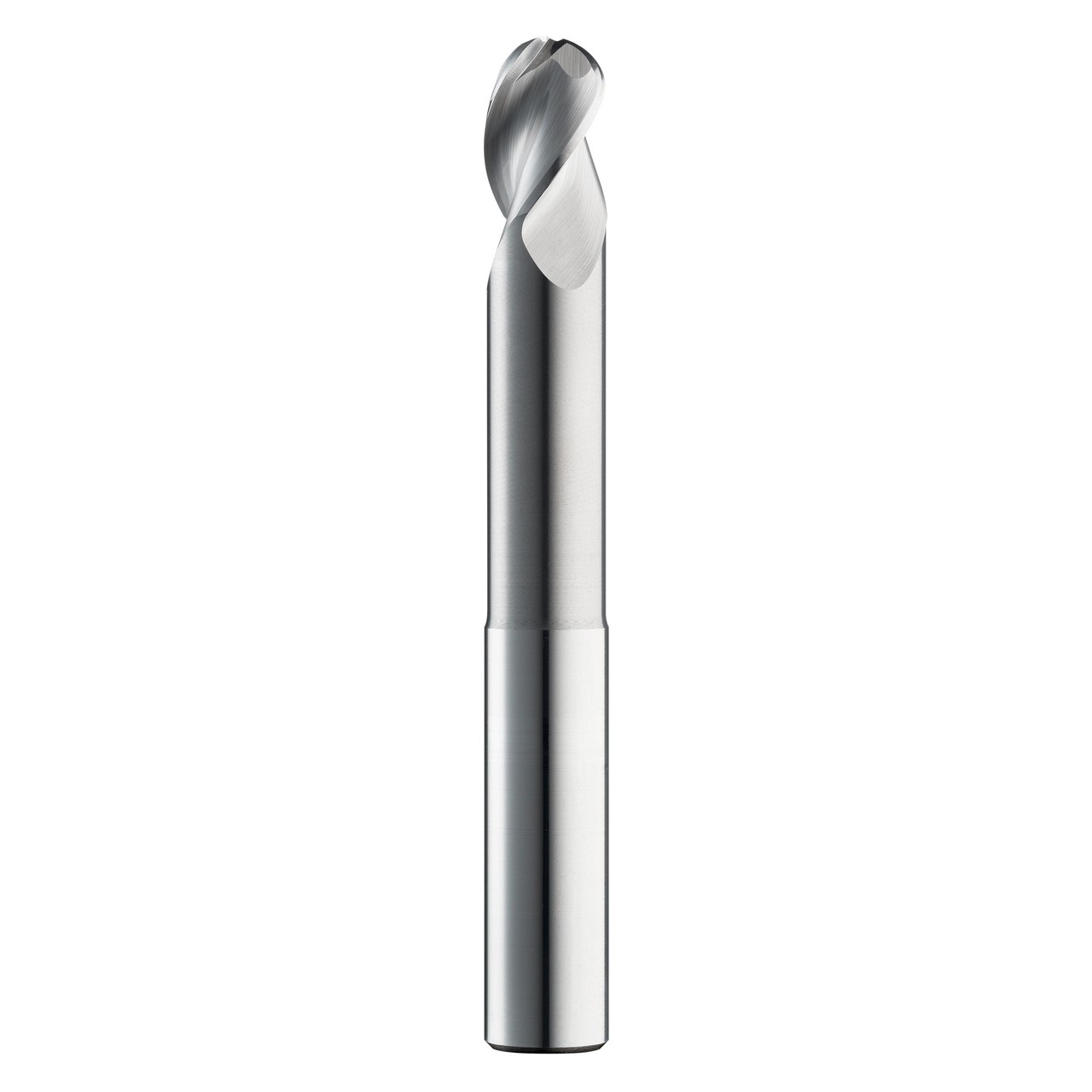

Features:
- Circular land allows for increased control at various speed and feed rates and reduces chatter
- Open fluting for deep slotting and profiling
- Necked design with blended diameter transitions provide clearance to reach
- Ball nose design ideal for finishing operations in complex workpieces
- Recommended for materials ≤ 150 BHN (≤ 7 HRC)
Product Specifications
| Cutting Diameter (Inch) | 1.000" |
| Shank Diameter (Inch) | 1.000" |
| Length of Cut (Inch) | 1.250" |
| Overall Length (Inch) | 5.000" |
| Shank Length (Inch) | 2.375" |
| Cut of Direction | Right Hand |
| Flute Type | Spiral |
| Reach (Inch) | 2.625" |
| Helix Angle | 38 Degree |
| Coating | TiB2 |
| Number of Flutes | 3 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
SGS
Number of Flutes:
3
Length of Cut (Inch):
1-1/4"
Length of Cut (Decimal Inch):
1.2500"
Length of Cut (mm):
31.75mm
Overall Length (Inch):
5"
Overall Length (Decimal Inch):
5.0000"
Overall Length (mm):
127mm
Shank Diameter (Inch):
1"
Shank Diameter (Decimal Inch):
1.0000"
Shank Diameter (mm):
25.4mm
Finish/Coating:
TB
Cutting Direction:
RHC
Helix Angle (Degree):
38 Degree
