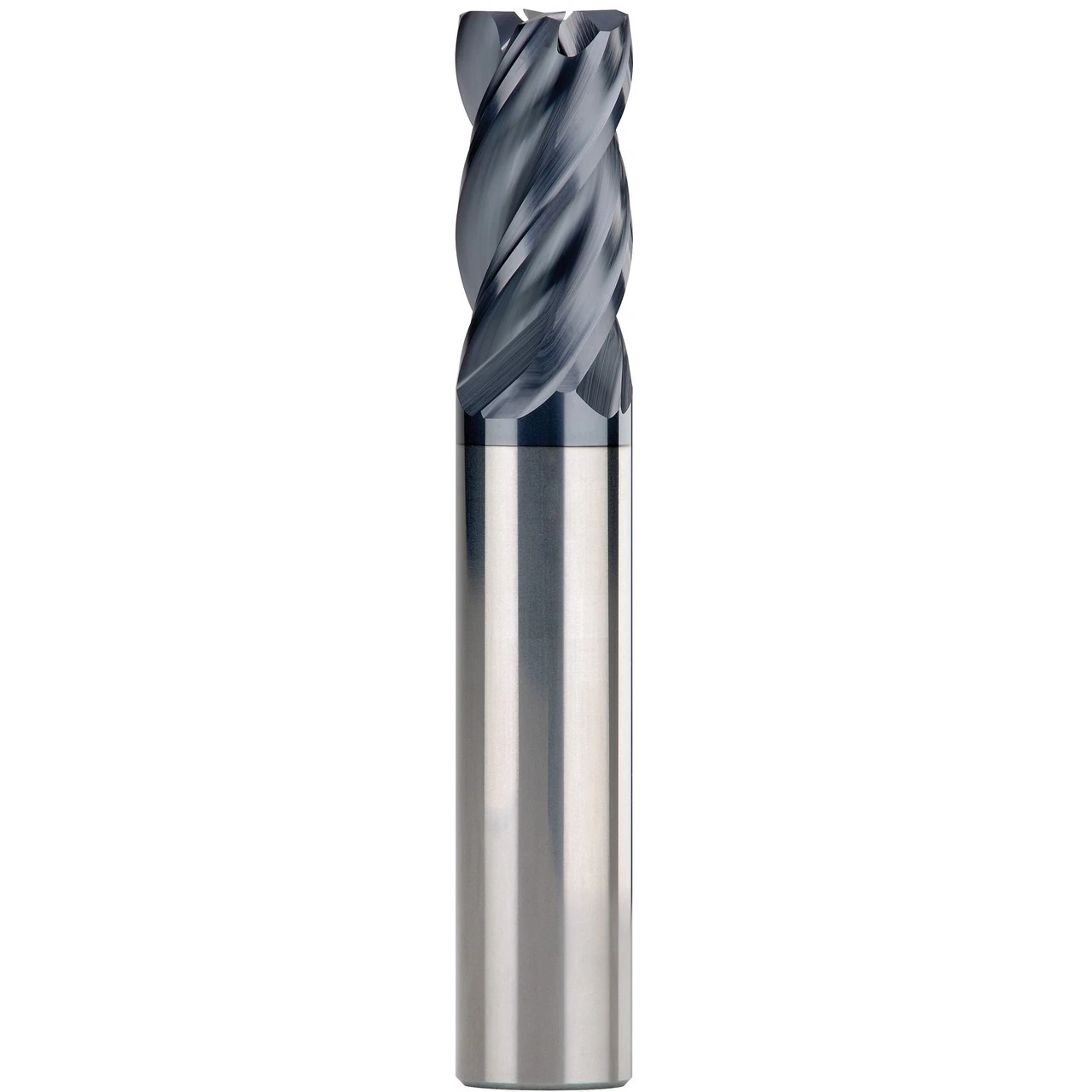

SGS 36722 | 3/16" Diameter x 3/16" Shank x 7/16" LOC x 2" OAL 4 Flute TX Coated Corner Radius End Mill

$22.67
Brand:
SGS
Number of Flutes:
4
End Type:
Corner Radius
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0300"
Corner Radius (mm):
0.76mm
Length of Cut (Inch):
7/16"
Length of Cut (Decimal Inch):
0.4370"
Length of Cut (mm):
11.1mm
Finish/Coating:
TX
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.8mm
Cutting Direction:
RHC
SKU:
25196879
UPC:
691781367224
Weight:
0.03 LBS
Shipping:
Calculated at Checkout

Features:

  • Variable rake geometry alters and controls the cutting dynamic taking chatter suppression to an unprecedented level
  • Unequal helix design changes the cutting angle to improve harmonics
  • Unequal flute spacing helps to disrupt the rhythmic pattern created by the cutting edge helping to suppress damaging harmonics
  • Long reach design allows for deeper and faster cuts
  • Enhanced corner geometry with tight tolerance corner radius
  • Recommended for materials ≤ 45 HRC (≤ 420 BHN)

Product Specifications
Cutting Diameter (Inch)3/16"
Shank Diameter (Inch)3/16"
Length of Cut (Inch)7/16"
Overall Length (Inch)2"
Shank Length (Inch)1.563"
Cut of DirectionRight Hand
Flute TypeSpiral
Corner Radius (Inch)0.03"
Helix Angle35-38 Degree
CoatingTX
Number of Flutes4
