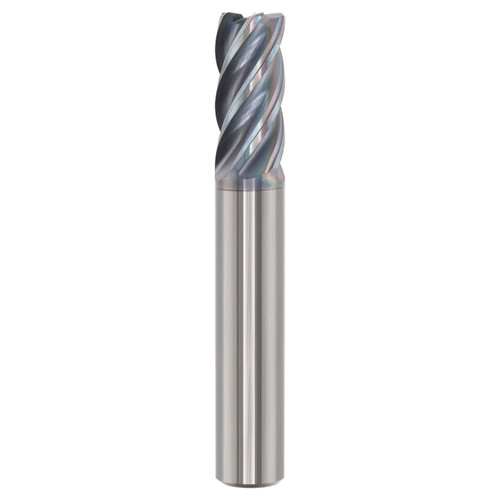

SGS 38727 | 0.500" Diameter x 0.500" Shank x 1.000" LOC x 3.000" OAL x 0.030" Radius 5 Flute MN (MEGACOAT NANO) Coated Corner Radius End Mill

$114.83
Brand:
SGS
Cutting Diameter (Inch):
1/2"
Cutting Diameter (Decimal Inch):
0.5000"
Cutting Diameter (mm):
12.70mm
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.20mm
Length of Cut (Inch):
1"
Length of Cut (Decimal Inch):
1.0000"
Length of Cut (mm):
25.40mm
Corner Radius (Inch):
2/67"
Corner Radius (Decimal Inch):
0.0300"
Corner Radius (mm):
0.76mm
Finish/Coating:
MN (MEGACOAT NANO)
Number of Flute:
5
interval quantity:
1
SKU:
25362946
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
SGS 38727 | 0.500" Diameter x 0.500" Shank x 1.000" LOC x 3.000" OAL x 0.030" Radius 5 Flute MN (MEGACOAT NANO) Coated Corner Radius End Mill

Features:

  • An ideal balance of helix, indexing, flute depth, rake and relief
  • Variable indexing for chatter supression and patented edge geometry for shearing and strength
  • Chatter-free geometry allows deep cutting and high speed machining
  • Optimized tool life through Kyocera proprietary PVD MEGACOAT NANO (MN) coating
  • Enhanced corner geometry with tight tolerance corner radii

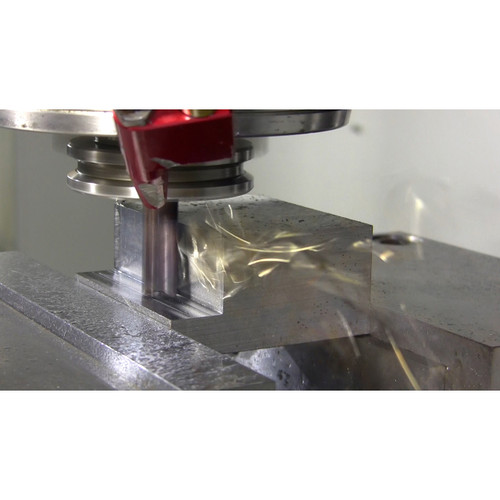

  • Excels at roughing, ramping, high speed machining and finishing in a variety of materials

Product Specifications
Manufacturer Part Number38727
Cutting Diameter (Inch)1/2"
Cutting Diameter (Decimal Inch)0.500"
Cutting Diameter (mm)12.70mm
Shank Diameter (Inch)1/2"
Shank Diameter (Decimal Inch)0.500"
Shank Diameter (mm)12.70mm
Length of Cut (Inch)1"
Length of Cut (Decimal Inch)1.000"
Length of Cut (mm)25.40mm
Overall Length (Inch)3"
Overall Length (Decimal Inch)3.000"
Overall Length (mm)76.20mm
Corner Radius (Decimal Inch)0.030"
Corner Radius (mm)0.76mm
Shank Length (Inch)2"
Shank Length (Decimal Inch)2.000"
Shank Length (mm)50.80mm
Shank Diameter Toleranceh6
Flute TypeSpiral
Number of Flutes5
Center CuttingNo
Chip BreakerNo
High PerformanceYes
CoatingMN (MEGACOAT NANO)
Product TypeCorner Radius End Mill
