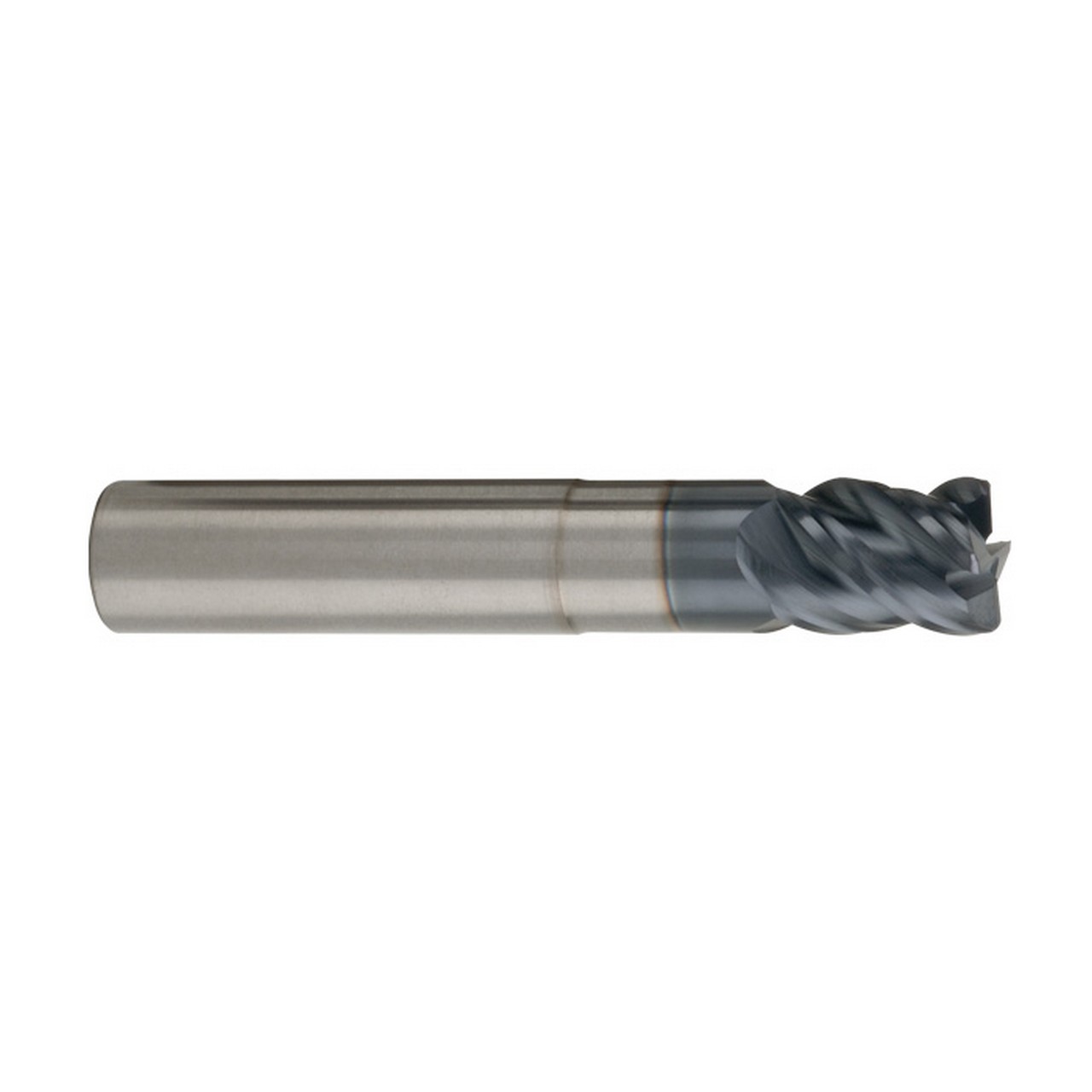

Features:
- The original Z-Carb design with negative rake, heavy core, and higher helix for strength and shearing of hard mold & die materials
- Unequal flute spacing helps to disrupt the rhythmic pattern created by the cutting edge helping to suppress damaging harmonics
- Enhanced corner geometry with tight tolerance corner radius
- Recommended for materials 35-60HRC (327 to 654 BHN)
Product Specifications
| Cutting Diameter (mm) | 3.0mm |
| Shank Diameter (mm) | 6.0mm |
| Length of Cut (mm) | 4.0mm |
| Overall Length (mm) | 57.0mm |
| Shank Length (mm) | 48.9mm |
| Cut of Direction | RHC |
| Flute Type | Spiral |
| Reach (mm) | 15mm |
| Corner Radius (mm) | 0.3 mm |
| Helix Angle | 42-45 Degree |
| Coating | TX |
| Number of Flutes | 4 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
SGS
Number of Flutes:
4
End Type:
Corner Radius
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0079"
Corner Radius (mm):
0.2mm
Length of Cut (Inch):
5/32"
Length of Cut (Decimal Inch):
0.1575"
Length of Cut (mm):
4mm
Finish/Coating:
TX
Shank Diameter (Inch):
15/64"
Shank Diameter (Decimal Inch):
0.2362"
Shank Diameter (mm):
6.00mm
Overall Length (Inch):
2-1/4"
Overall Length (Decimal Inch):
2.2441"
Overall Length (mm):
57mm
Cutting Direction:
RHC
