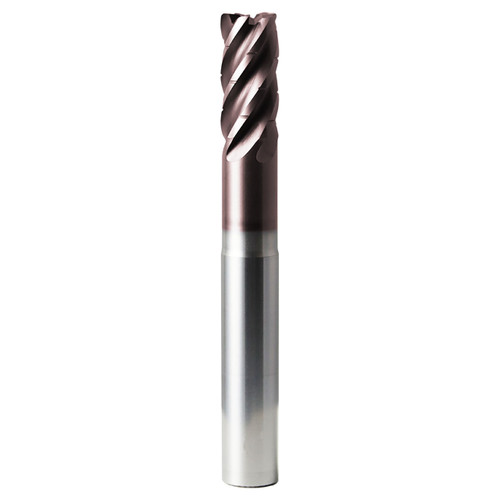

Features:
- Positive Radial Rake
- Variable Flute Pattern
- Open Center Design
- Long Reach
Product Specifications
| Manufacturer Part Number | 47743 |
| Cutting Diameter (Decimal Inch) | 0.787" |
| Cutting Diameter (mm) | 20.00mm |
| Shank Diameter (Decimal Inch) | 0.787" |
| Shank Diameter (mm) | 20.00mm |
| Length of Cut (Decimal Inch) | 1.693" |
| Length of Cut (mm) | 43.00mm |
| Overall Length (Decimal Inch) | 5.906" |
| Overall Length (mm) | 150.00mm |
| Reach (Decimal Inch) | 3.150" |
| Reach (mm) | 80.00mm |
| Neck Diameter (Decimal Inch) | 0.748" |
| Neck Diameter (mm) | 19.00mm |
| Corner Radius (Decimal Inch) | 0.039" |
| Corner Radius (mm) | 1.00mm |
| Shank Diameter Tolerance | h6 |
| Flute Type | Spiral |
| Number of Flutes | 5 |
| Center Cutting | No |
| Chip Breaker | Yes |
| High Performance | Yes |
| Coating | TM (Ti-NAMITE-M) |
| Product Type | Chip Breaker Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
SGS
Cutting Diameter (Inch):
48/61"
Cutting Diameter (Decimal Inch):
0.7870"
Cutting Diameter (mm):
20.00mm
Shank Diameter (Inch):
48/61"
Shank Diameter (Decimal Inch):
0.7870"
Shank Diameter (mm):
20.00mm
Overall Length (Inch):
5-29/32"
Overall Length (Decimal Inch):
5.9060"
Overall Length (mm):
150.00mm
Length of Cut (Inch):
1-9/13"
Length of Cut (Decimal Inch):
1.6930"
Length of Cut (mm):
43.00mm
Corner Radius (Inch):
3/77"
Corner Radius (Decimal Inch):
0.0390"
Corner Radius (mm):
0.99mm
Finish/Coating:
TM (Ti-NAMITE-M)
Number of Flute:
5
