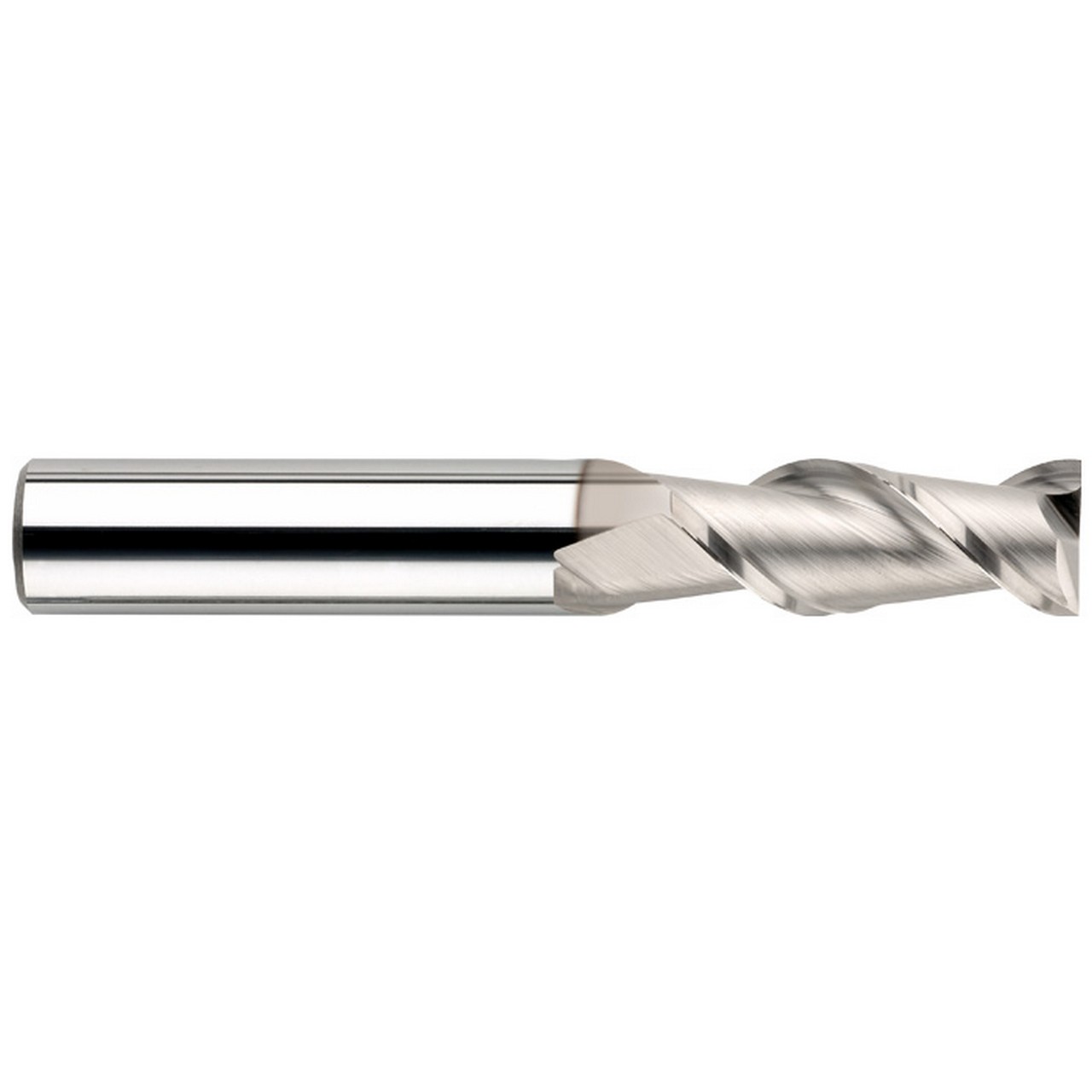

SGS 49664 | 4.0mm Diameter x 6.0mm Shank x 11.0mm LOC x 55.0mm OAL 2 Flute Uncoated Square End Mill

$51.92
Brand:
SGS
Number of Flutes:
2
Length of Cut (Inch):
7/16"
Length of Cut (Decimal Inch):
0.4331"
Length of Cut (mm):
11mm
Finish/Coating:
UN
Shank Diameter (Inch):
15/64"
Shank Diameter (Decimal Inch):
0.2362"
Shank Diameter (mm):
6.00mm
Overall Length (Inch):
2-11/64"
Overall Length (Decimal Inch):
2.1654"
Overall Length (mm):
55mm
Helix Angle:
45 Degree
Cutting Direction:
RHC
SKU:
25200886
UPC:
691781496641
Weight:
0.03 LBS
Shipping:
Calculated at Checkout

Features:

  • Polished ski land with primary and secondary flute wall design minimizes chip interference by directing chips away from secondary flute
  • Circular land allows for increased control at various speed and feed rates ultimately reducing chatter
  • Recommended for materials ≤ 150 BHN (≤ 7 HRC)

Product Specifications
Cutting Diameter (mm)4.0mm
Shank Diameter (mm)6.0mm
Length of Cut (mm)11.0mm
Overall Length (mm)55.0mm
Shank Length (mm)44.0mm
Cut of DirectionRHC
Flute TypeSpiral
Helix Angle45 Degree
CoatingUncoated
Number of Flutes2
