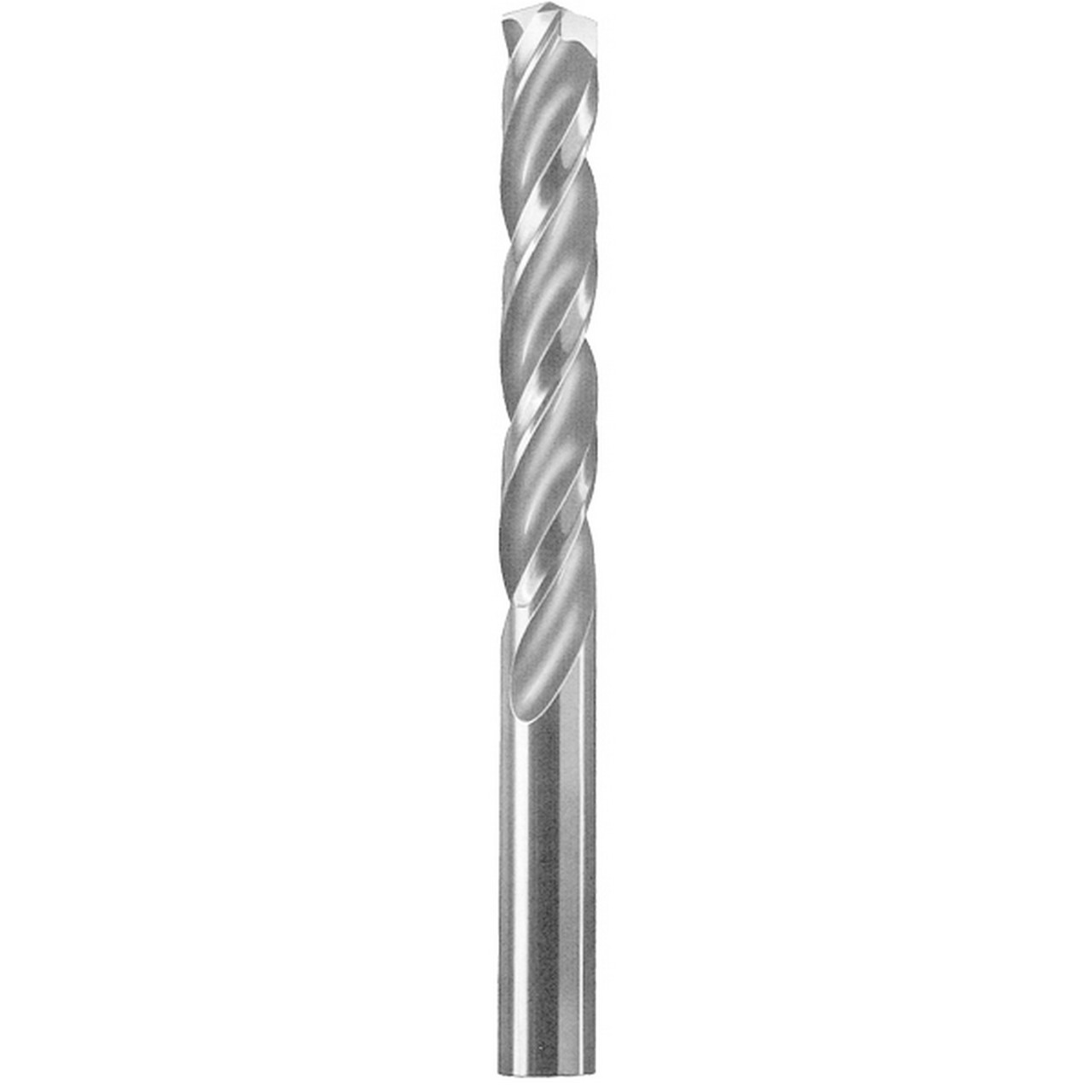

SGS 53022 | #22 x 0.157" Shank x 1-3/8" LOC x 2-5/8" OAL 3 Flute Uncoated Screw Machine Length Drill Bit

$31.52
Brand:
SGS
Drill Point Angle:
150°
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.5mm
Finish/Coating:
UN
Flute Type:
Spiral
Cutting Direction:
RHC
SKU:
10229523
Weight:
0.03 LBS
Shipping:
Calculated at Checkout

Product Specifications
Wire Diameter#22
Cutting Diameter (Inch)0.157"
Shank Diameter (Inch)0.157"
Length of Cut (Inch)1-3/8"
Overall Length (Inch)2-5/8"
Shank Length (Inch)1.22"
Cut of DirectionRight Hand
Flute TypeSpiral
Cleared Length (Inch)1.1094"
Helix Angle30 Degree
Point Angle150 Degree
CoatingUncoated
Number of Flutes3

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
SGS
Drill Point Angle:
150°
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.5mm
Finish/Coating:
UN
Flute Type:
Spiral
Cutting Direction:
RHC
