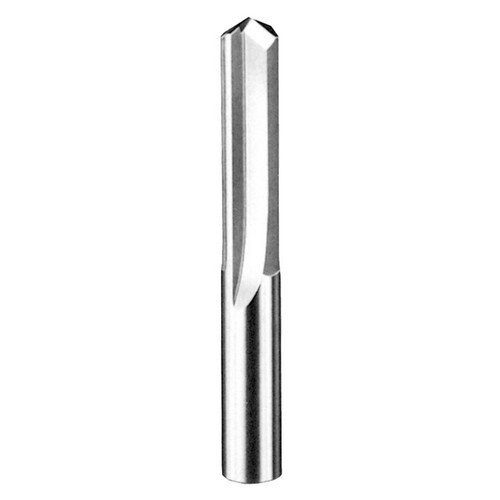

Product Specifications
| Wire Diameter | #19 |
| Cutting Diameter (Inch) | 0.166" |
| Shank Diameter (Inch) | 0.166" |
| Length of Cut (Inch) | 1-1/16" |
| Overall Length (Inch) | 2-1/8" |
| Shank Length (Inch) | 1.128" |
| Cut of Direction | Right Hand |
| Flute Type | Spiral |
| Cleared Length (Inch) | 0.8594" |
| Point Angle | 140 Degree |
| Coating | Uncoated |
| Number of Flutes | 2 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
SGS
Overall Length (Inch):
2-1/8"
Overall Length (Decimal Inch):
2.1250"
Overall Length (mm):
53.98mm
Drill Point Angle:
140°
Finish/Coating:
UN
