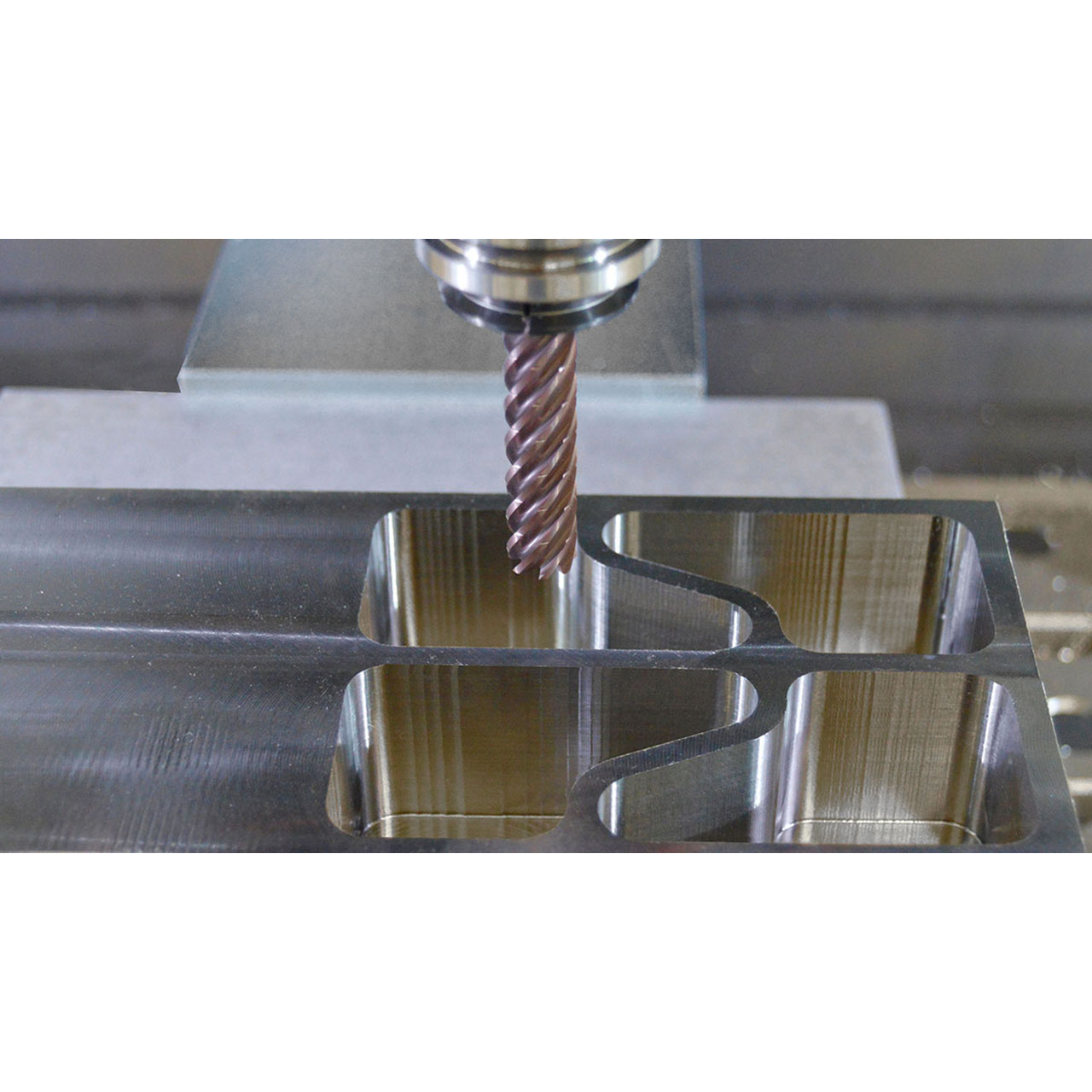

SGS 77341 | 0.500" Diameter x 0.500" Shank x 1.250" LOC x 3.250" OAL 7 Flute TM (Ti-NAMITE-M) Coated Square End Mill

$230.45
Brand:
SGS
Cutting Diameter (Inch):
1/2"
Cutting Diameter (Decimal Inch):
0.5000"
Cutting Diameter (mm):
12.70mm
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Overall Length (Inch):
3-1/4"
Overall Length (Decimal Inch):
3.2500"
Overall Length (mm):
82.55mm
Length of Cut (Inch):
1-1/4"
Length of Cut (Decimal Inch):
1.2500"
Length of Cut (mm):
31.75mm
Finish/Coating:
TM (Ti-NAMITE-M)
Number of Flute:
7
interval quantity:
1
SKU:
25363370
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Features:

  • Specializes in deep axial trochoidal and high-speed milling applications
  • Optimized core improves rigidity, chip flow and reduces deflection

Product Specifications
Manufacturer Part Number77341
Cutting Diameter (Inch)1/2"
Cutting Diameter (Decimal Inch)0.500"
Cutting Diameter (mm)12.70mm
Shank Diameter (Inch)1/2"
Shank Diameter (Decimal Inch)0.500"
Shank Diameter (mm)12.70mm
Length of Cut (Inch)1-1/4"
Length of Cut (Decimal Inch)1.250"
Length of Cut (mm)31.75mm
Overall Length (Inch)3-1/4"
Overall Length (Decimal Inch)3.250"
Overall Length (mm)82.55mm
Shank Diameter Toleranceh6
Flute TypeSpiral
Number of Flutes7
Center CuttingNo
Chip BreakerNo
High PerformanceYes
CoatingTM (Ti-NAMITE-M)
Product TypeSquare End Mill

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
