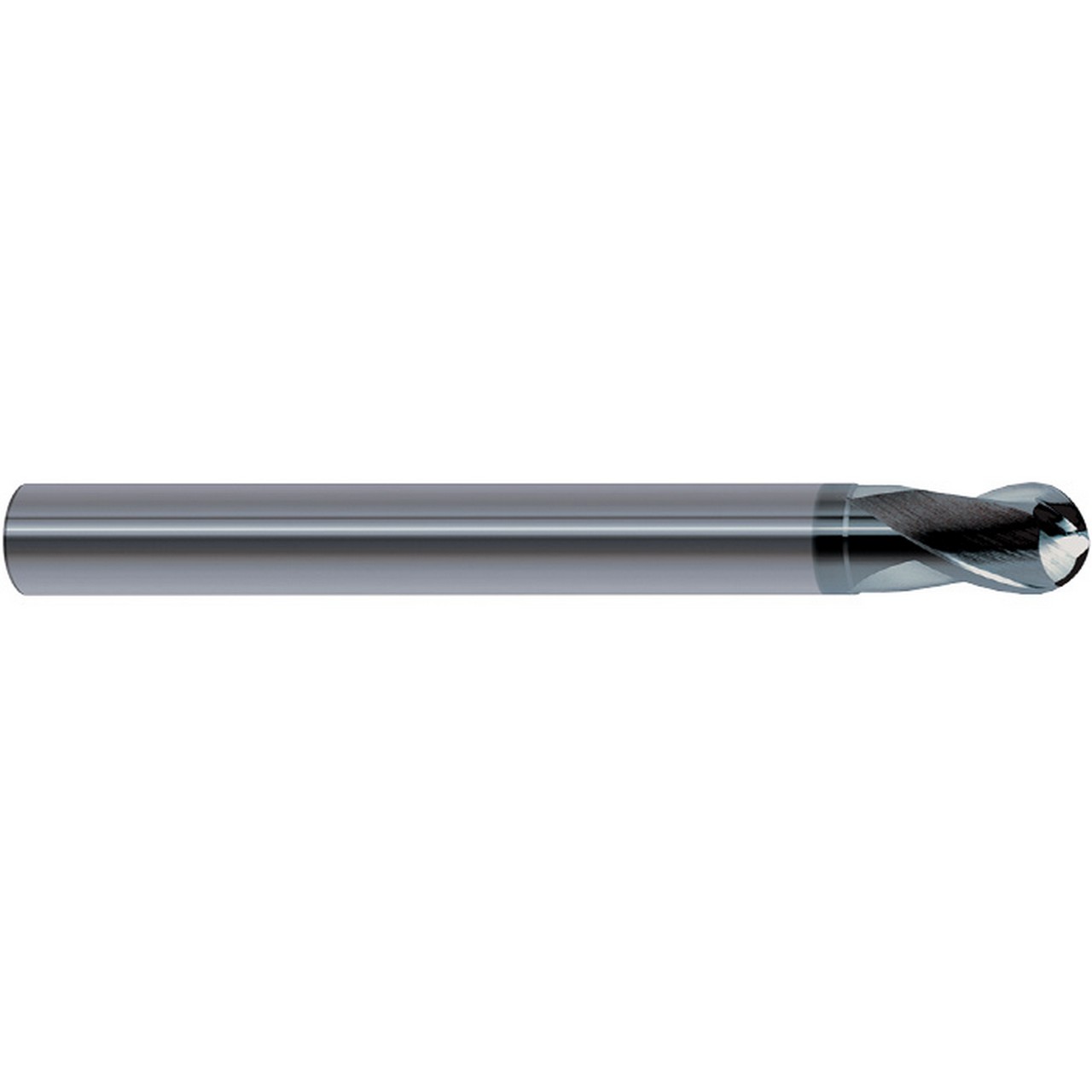

Features:
- Short flute length and rigid design to reduce deflection
- S-Gash Ball geometry minimizes load and heat produced during the cutting process, ultimately enhancing tool life
- Ideal for machining complex contoured shapes in hardened steels
- Recommended for materials 35 to 60 HRC (327 to 654 BHN)
Product Specifications
| Cutting Diameter (mm) | 5.0mm |
| Shank Diameter (mm) | 6.0mm |
| Length of Cut (mm) | 5.0mm |
| Overall Length (mm) | 89.0mm |
| Shank Length (mm) | 83.9mm |
| Cut of Direction | RHC |
| Flute Type | Spiral |
| Reach (mm) | 11mm |
| Helix Angle | 30 Degree |
| Coating | TX |
| Number of Flutes | 2 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
SGS
Number of Flutes:
2
Length of Cut (Inch):
13/64"
Length of Cut (Decimal Inch):
0.1969"
Length of Cut (mm):
6.00mm
Overall Length (Inch):
3-1/2"
Overall Length (Decimal Inch):
3.5039"
Overall Length (mm):
89mm
Shank Diameter (Inch):
15/64"
Shank Diameter (Decimal Inch):
0.2362"
Shank Diameter (mm):
6.00mm
Finish/Coating:
TX
Cutting Direction:
RHC
Helix Angle (Degree):
30 Degree
