Features
CSN 243326
CSN 243326
- The rotating spindle is extended right through the tapered shank
- Two specially designed adjustable needle-roller bearings carry all radial loads
- A heavy duty ball thrust bearing takes all axial thrust
- Complete protection of bearings from the ingress of coolant, dirt or swarf is provided by the built-in oil-seal, which also prevents loss of lubricant

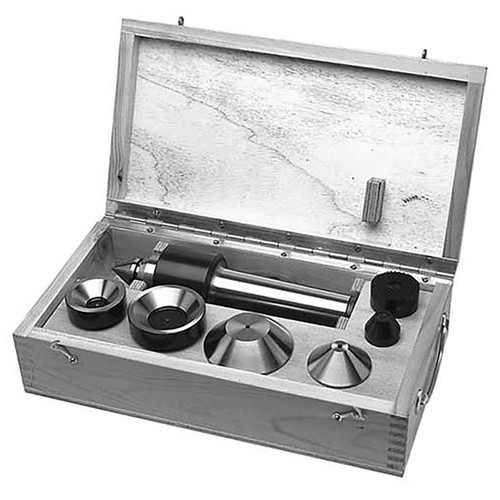

- Live center body
- Drift key
- Wooden case, maximum weight of workpiece is independent of the individual point being used
- 7 interchangeable points (60 degree point, bullnose point, small bullnose point, 60 degree centerless point, 90 degree centerless point, toothed point, 60 degree reverse point)
Product Specifications
| Manufacturer Part Number | 310715 |
| Shank Type | Taper Shank |
| Maximum Workpiece Weight (Lb.) | 4400 |
| Taper Size | MT5 |
| Fixed or Interchangeable | Interchangeable |
| Model Number | CSN 243326 |
| Number of Points | 7 |
| Product Type | Live Centre And Point Set |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Skoda
