Features

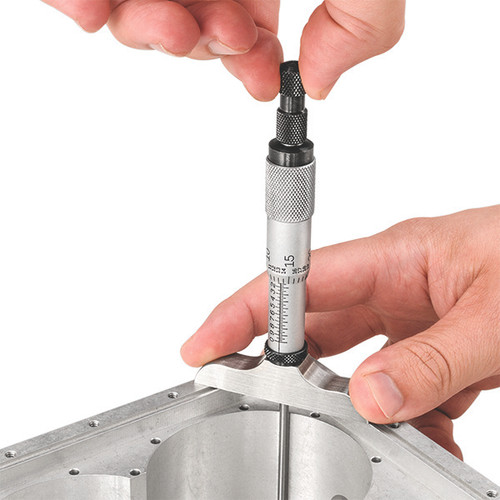

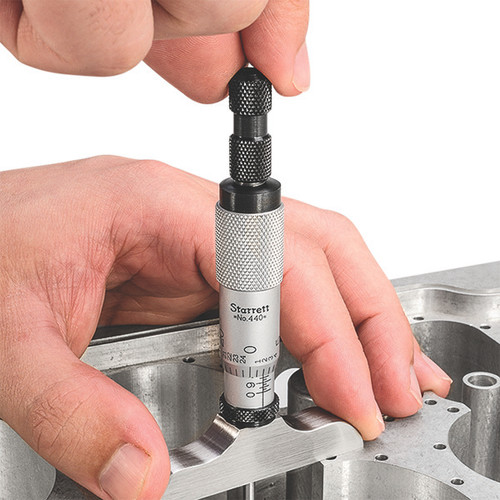

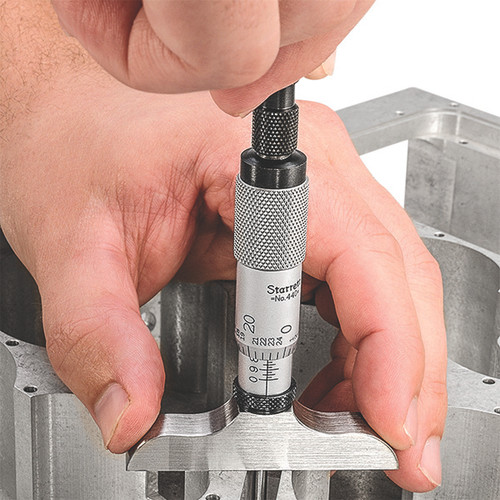

- The depths of holes, slots, shoulders and projections can be measured with these fine tools
- 2-1/2" (63.5mm) base and 1/8" (3.2mm) diameter measuring rods
- Combination ratchet and speeder for uniform pressure and quicker adjustment
- Ring-type knurled lock nut for quick and sure locking
Product Specifications
| Micrometer Type | Mechanical |
| Range (in) | 0-3" |
| Graduations (in) | .001" |
| Base Length (in) | 2-1/2" |
| Lock Nut Type | Ring Type Knurled |
| Measuring Rods (qty) | 3 |
| Rod Diameter (in) | 1/8" |
| Thimble Type | Ratchet |
| Case Type | Padded Case |
| Accuracy (in) | Mic head +/-.0001"; Rods +/-.0002" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Starrett
Minimum Measurement (Inch):
0"
Minimum Measurement (Decimal Inch):
0.0000"
Maximum Measurement (Inch):
3"
Maximum Measurement (Decimal Inch):
3.0000"
Graduation (Inch):
0"
Graduation (Decimal Inch):
0.0010"
Base Length (Inch):
2-1/2"
Base Length (Decimal Inch):
2.5000"
Base Length (mm):
63.50mm
No of External Rods:
3
Thimble Type:
Ratchet
Ships:
From Manufacturer
