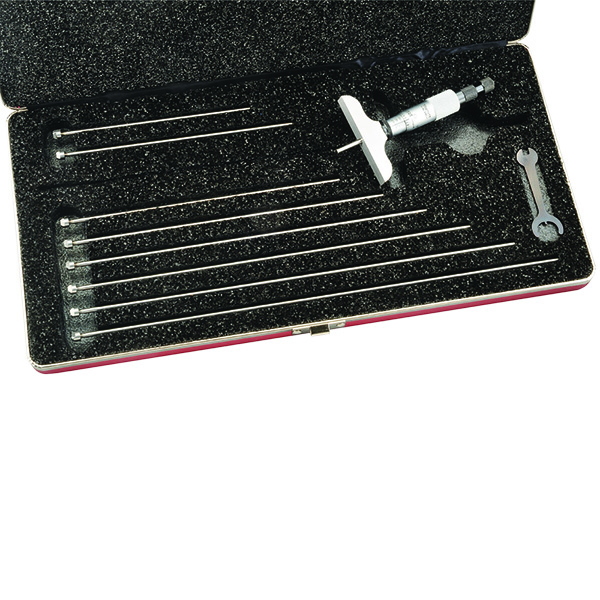

Starrett 440Z-9RL | 0"-9" Range Depth Micrometer 0.0010" Graduation 2-1/2" Base Length Ratchet Thimble

$560.00
Ships:
From Manufacturer
Brand:
Starrett
Minimum Measurement (Inch):
0"
Minimum Measurement (Decimal Inch):
0.0000"
Maximum Measurement (Inch):
9"
Maximum Measurement (Decimal Inch):
9.0000"
Graduation (Inch):
0"
Graduation (Decimal Inch):
0.0010"
Base Length (Inch):
2-1/2"
Base Length (Decimal Inch):
2.5000"
Base Length (mm):
63.50mm
No of External Rods:
9
Thimble Type:
Ratchet
Ships:
From Manufacturer
SKU:
30024342
UPC:
049659521238
Weight:
0.11 LBS
Shipping:
Free Shipping
Features
  • The depths of holes, slots, shoulders and projections can be measured with these fine tools
  • 2-1/2" (63.5mm) base and 1/8" (3.2mm) diameter measuring rods
  • Combination ratchet and speeder for uniform pressure and quicker adjustment
  • Ring-type knurled lock nut for quick and sure locking
Product Specifications
Micrometer Type Mechanical
Range (in) 0-9"
Graduations (in) .001"
Base Length (in) 2-1/2"
Lock Nut Type Ring Type Knurled
Measuring Rods (qty) 9
Rod Diameter (in) 1/8"
Thimble Type Ratchet
Case Type Padded Case
Accuracy (in) Mic head +/-.0001"; Rods +/-.0002"
