Starrett 52318 | 0"-3" Range Depth Micrometer 0.0010" Graduation 2-1/2" Base Length Ratchet Thimble

About This Item

Features

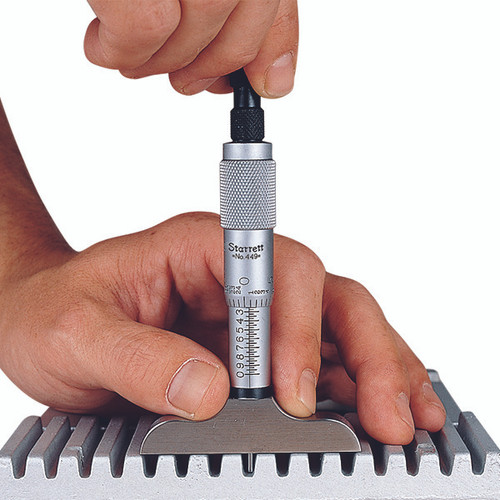

• The depths of holes, slots, shoulders and projections can be measured with these fine tools
• Non-rotating blade: blade does not turn, but moves perpendicularly only
• 2-1/2" (63mm) base
• .045" thick x 1/8" wide (1.2 x 3.2mm) blade
• Combination ratchet and speeder for uniform pressure and quicker adjustment
• Ring-type knurled lock nut for quick and sure locking

Product Specifications

Micrometer Type	Mechanical
Range (in)	0-3"
Graduations (in)	.001"
Base Length (in)	2-1/2"
Lock Nut Type	Plain
Measuring Rods (qty)	3
Rod Diameter (in)	.045x1/8"
Thimble Type	Ratchet
Case Type	Padded Case
Accuracy (in)	Mic head +/-.0001"; Rods +/-.0002"
