Features

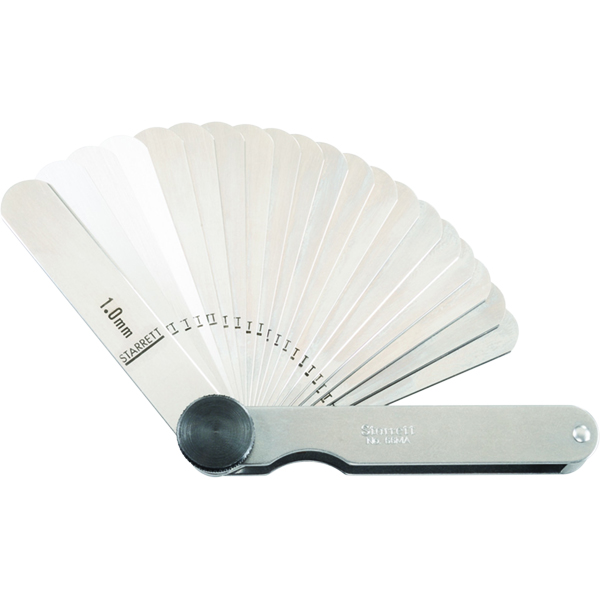

- Leaves made of finest tempered-steel, carefully finished to correct thickness, individually tested and marked with thickness
- Locking device on most gages - permits securely locking one or more leaves in position
- Leaves easily removed or replaced
- Rugged, substantial steel case protects leaves
- Straight Leaves
- Leaves made of finest tempered-steel
- Locking device on most gages permits securely locking one or more leaves in position
Product Specifications
| Range (mm) | .05mm-1.0mm |
| Number of Leaves | 20 |
| Size of Leaves (mm) | 12.7mmx77mm |
| Thickness (mm) | .05-1.0 |
| Leave Type | Straight |
| Leaves | 0.05, 0.10, 0.15, 0.20, 0.25, 0.30, 0.35, 0.40, 0.45, 0.50, 0.55, 0.60, 0.65, 0.70, 0.75, 0.80, 0.85, 0.90, 0.95, 1.0 |
| Locking Device | Yes |
| Material | Tempered Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Starrett
Minimum Measurement (Inch):
0"
Minimum Measurement (Decimal Inch):
0.0019"
Minimum Measurement (mm):
0.05mm
Maximum Measurement (Inch):
3/64"
Maximum Measurement (Decimal Inch):
0.0393"
Maximum Measurement (mm):
1mm
Material:
Tempered Steel
Number of Leaves:
20
Leave Type:
Straight
Ships:
From Manufacturer
