Features
- These gages are also available with electronic indicators by special order
- Useful for controlling approach to tolerance without removing the workpiece from a machine
- Sets furnished in attractive, protective case
- Each set consists of a dial indicator, a body and actuating rod, two adjusting wrenches and the probes
- The split-ball contact is self-centering, the two-point contact detects hole geometry problems like taper, bell-mouth and out-of- roundness
- Interchangeable probes are hard chrome plated and polished
- All probes come complete with actuating rod
- Reads to .0001"
Product Specifications
| Range (in) | .560 - 1.565" |
| Graduations (in) | .0001" |
| Approximate Measuring Depth (in) | 2-1/2" and 5" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov

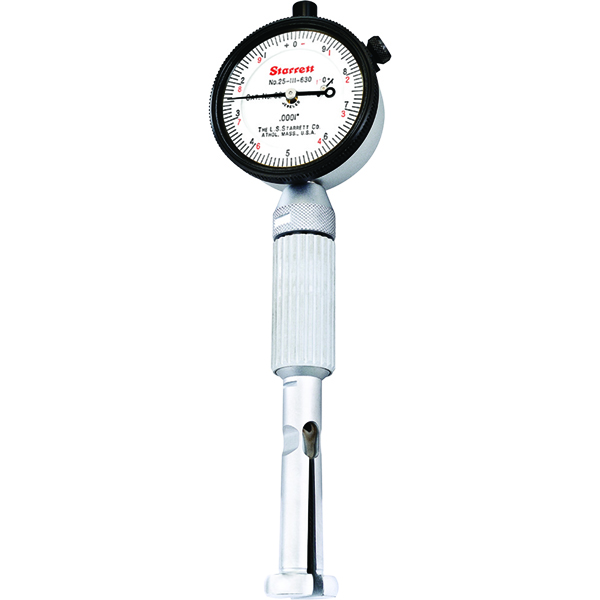

Brand:
Starrett
Type:
Dial Bore Gage
Minimum Measurement (Inch):
9/16"
Minimum Measurement (Decimal Inch):
0.5600"
Minimum Measurement (mm):
14.22mm
Maximum Measurement (Inch):
1-9/16"
Maximum Measurement (Decimal Inch):
1.5650"
Maximum Measurement (mm):
39.75mm
Graduation (Inch):
0"
Graduation (Decimal Inch):
0.0001"
Graduation (mm):
0.002mm
Gage Depth (Inch):
2-1/2/5"
Gage Depth (Decimal Inch):
2.5000/5.0000"
Gage Depth (mm):
63.50mm/127mm
Ships:
From Manufacturer
