Features

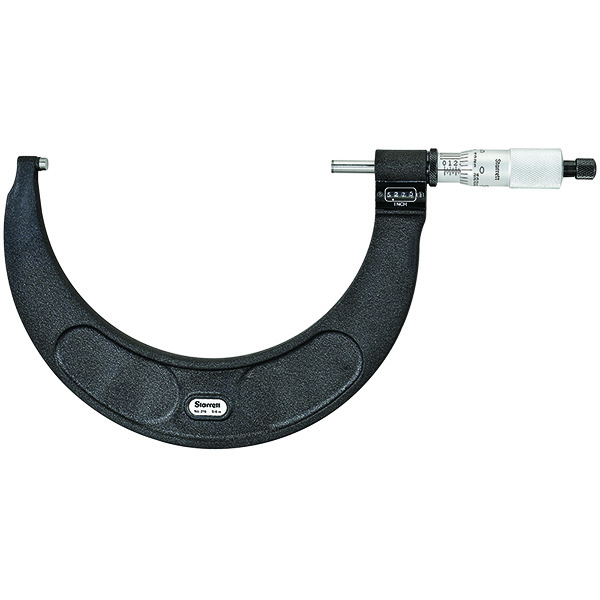

- This is the Starrett mechanical digital micrometer - simple to use even by the inexperienced
- Clear, easily read numbers reduce errors
- Balanced frame design for comfortable and accurate measuring
- Gracefully designed tapered frame for use in narrow slots and tight places
- Carbide Measuring Faces
- Micro-lapped measuring faces
- Starrett no-glare satin chrome finish on thimble and sleeve
- No-glare black finish on the frame
- Ring-type knurled lock nut for quick and sure locking
- The anvil and spindle are sized at .250" (6.35mm)
- Extremely hard and stable one-piece spindle
- .001" or .01mm is read directly from the counter
- .0001" or .001mm is read from the vernier scale on the micrometer sleeve
Product Specifications
| Micrometer Type | Outside |
| Range (in) | 5-6" |
| Graduations (in) | .0001" |
| Anvil/Spindle Material | Carbide |
| Anvil Type | Flat |
| Spindle Type | Flat |
| Lock Nut Type | Knurled Ring Type |
| Thimble Type | Ratchet |
| Accuracy (in) | +/-.0001" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Starrett
Minimum Measurement (Inch):
5"
Minimum Measurement (Decimal Inch):
5.0000"
Maximum Measurement (Inch):
6"
Maximum Measurement (Decimal Inch):
6.0000"
Graduation (Inch):
0"
Graduation (Decimal Inch):
0.0001"
Thimble Type:
Ratchet
Material:
Carbide
Finish/Coating:
Satin Chrome/Black
Ships:
From Manufacturer
