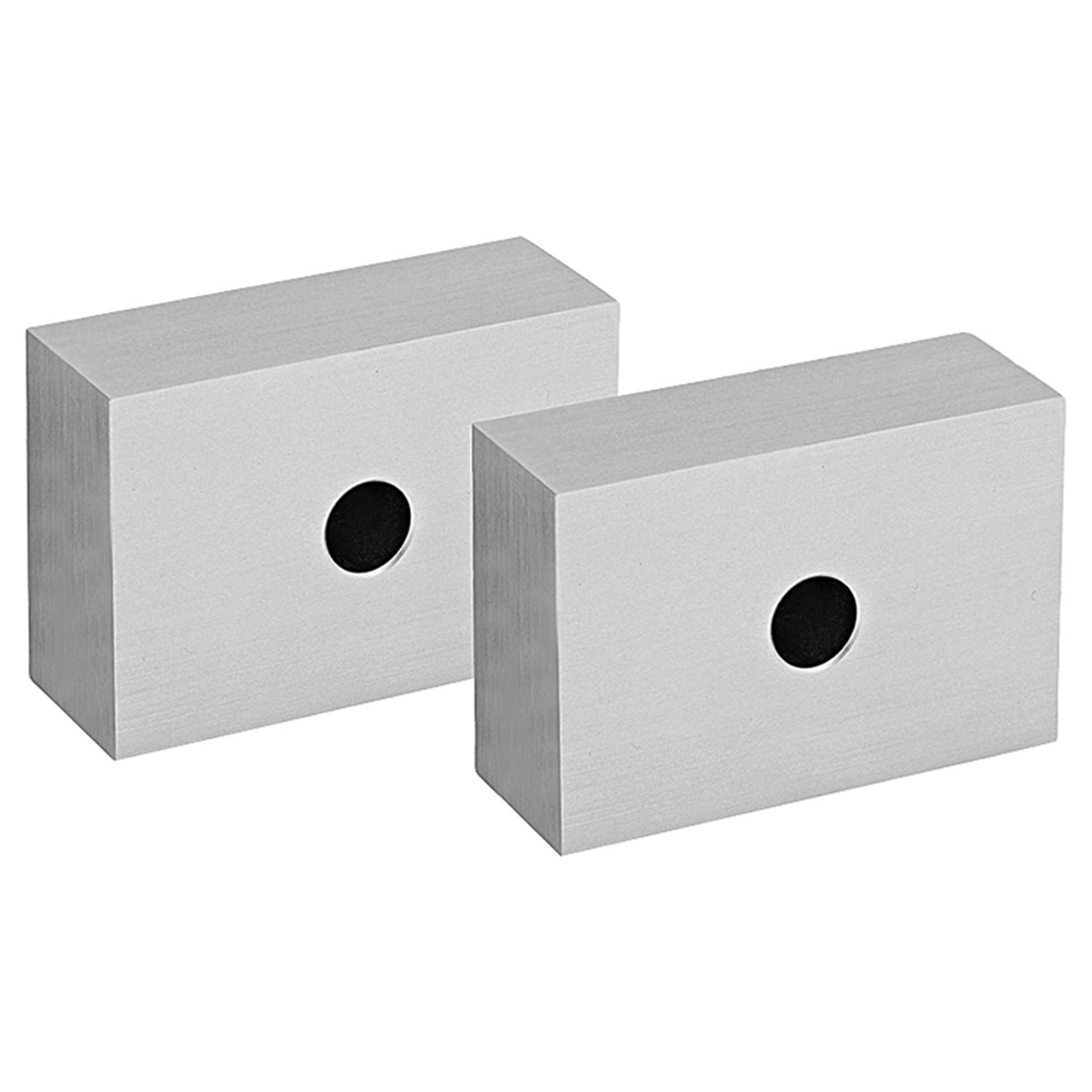

STM 230876 | 1" OAL Set Up Block

$50.22 $43.19
(You save $7.03)
Brand:
STM
Overall Height (Inch):
3"
Overall Height (Decimal Inch):
3.0000"
Overall Height (mm):
76.20mm
Squareness Per 1 Inch:
0.0001"
Number of Holes:
1
interval quantity:
1
SKU:
30122350
UPC:
Weight:
3.32 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Features
  • These blocks are very useful in mounting work for precision grinding, layout work, etc.
  • Blocks are hardened to 58-60 RC and ground to surface finish 6-10 micro inches
  • Blocks are matched
  • Includes fitted case

Product Specifications
Manufacturer Part Number230876
Overall Width (Inch)1"
Overall Length (Inch)2"
Overall Height (Inch)3"
Squareness Per 1 Inch (Decimal Inch)0.0001"
Sold AsPair
Number of Tapped Holes0
MaterialSteel
Overall Tolerance (Decimal Inch)0.0002"
Number Of Holes1
Number of Untapped Holes1
Hardness58-60 HRC
Product TypeSet Up Block
