Features

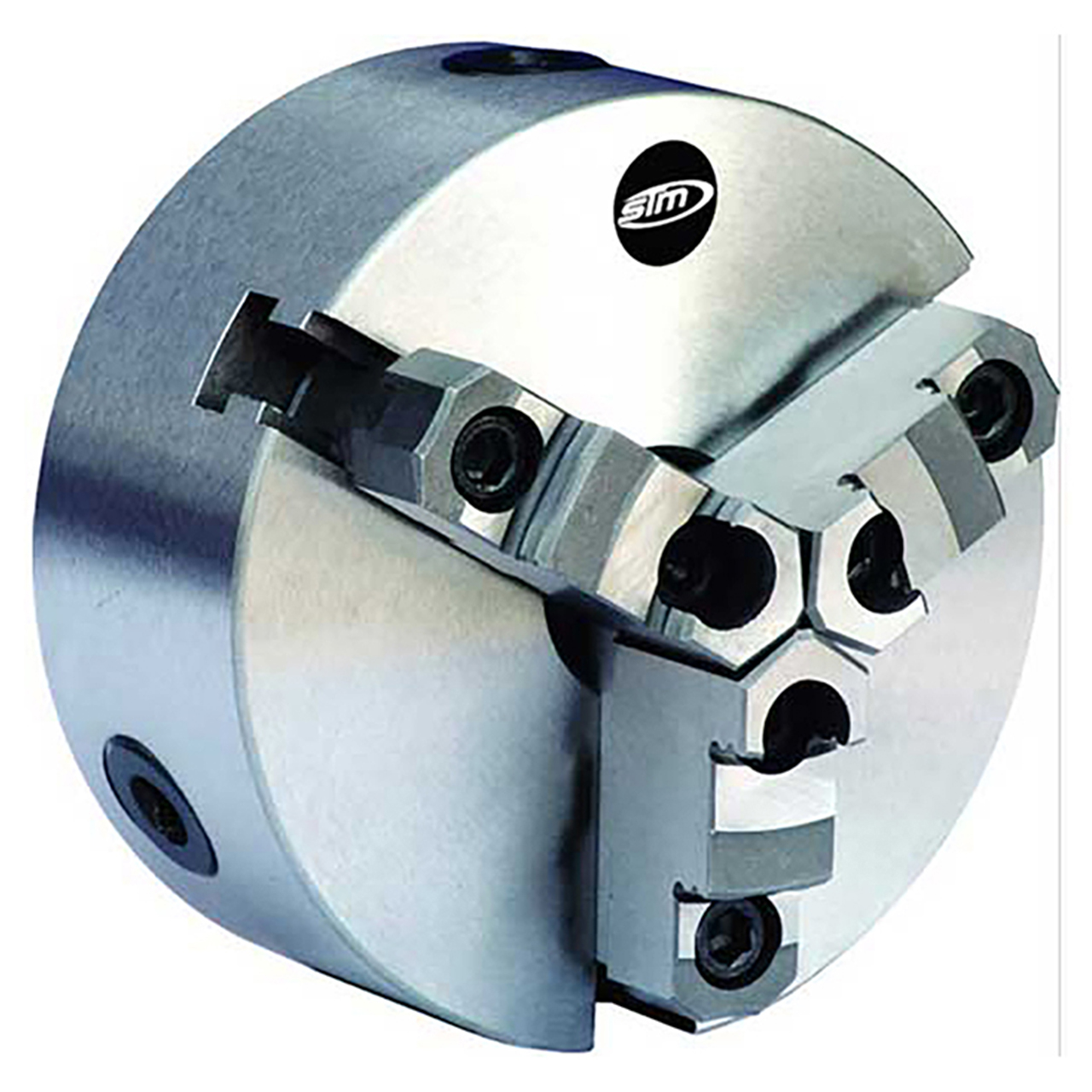

- 3 jaw, self-centering scroll chuck with manual gripping and a high quality cast iron body
- Smart design, allowing inner parts to be replaced quickly
- Mounted on the machine-tool spindle from the back of the chuck, using the adapter plate
- Application: This chuck is designed for all types of workshop machining operations on conventional lathes and milling fixtures
Product Specifications
| Manufacturer Part Number | 4440940 |
| Chuck Type | Self-Centering |
| Nominal Chuck Size (Inch) | 10" |
| Number of Jaws | 3 |
| Mount | D1-6 |
| Through-Hole Diameter (Decimal Inch) | 2.756" |
| Body Material | Cast Iron |
| Reversible Jaws | Yes |
| Product Type | Manual Lathe Chuck |
