| EDP Number | 144VAMT |

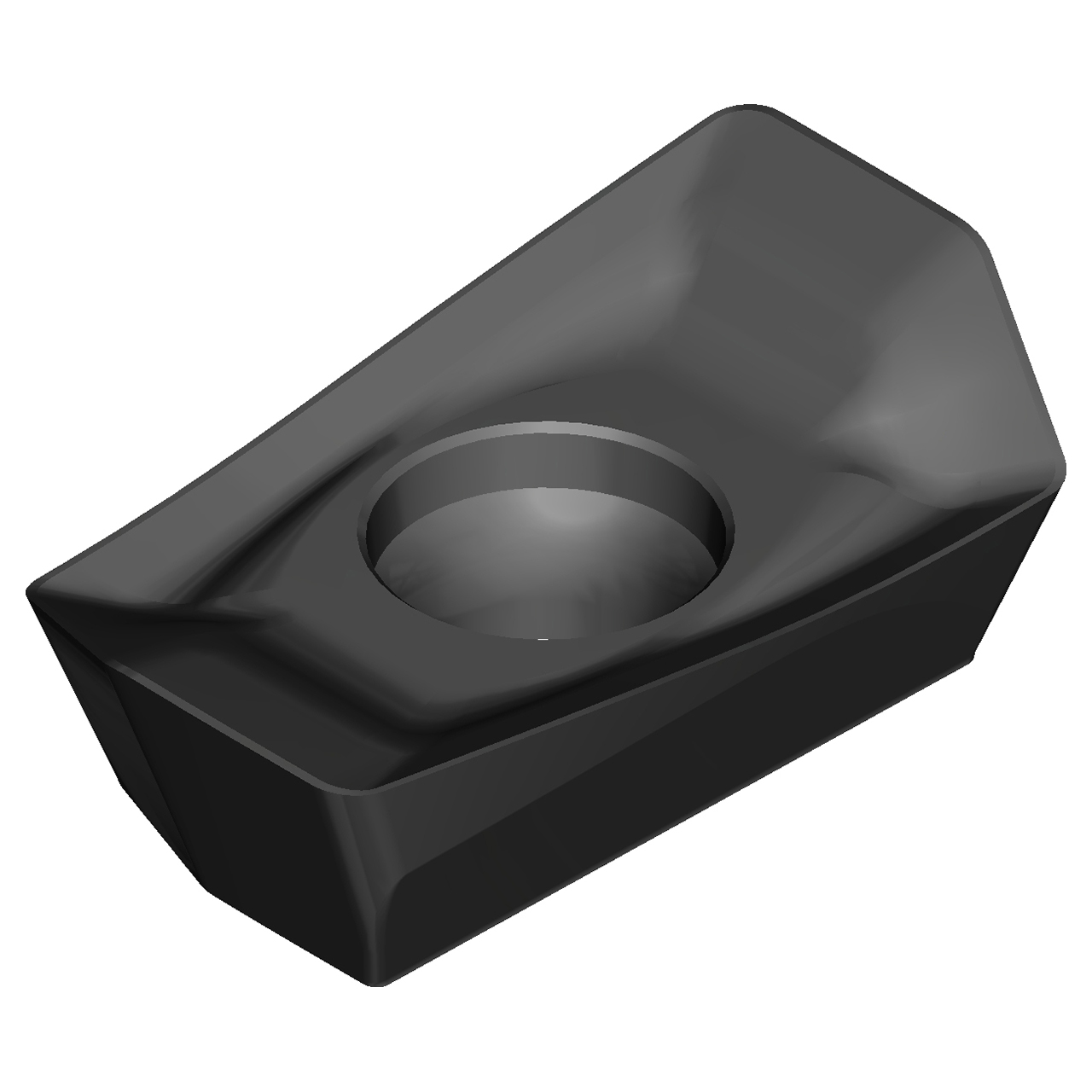

| Product Code-ANSI | AOMT170532PEER-G-ACM200 |
| Manufacturer Grade Identification | ACM200 |
| Series | WEZ |
| Maximum Depth of Cut (mm) | 15.00mm |
| Cutting Edge Length (Decimal Length) | 0.7677" |
| Cutting Edge Length (mm) | 19.50mm |
| Nose Radius (Decimal Inch) | 0.1260" |
| Nose Radius (mm) | 3.20mm |
| Insert Thickness (Decimal Inch) | 0.2165" |
| Insert Thickness (mm) | 5.50mm |
| Coating | ACM200 |
| Coating Process | CVD |
| Insert Style | AOMT |
| Insert Side | Single |
| Insert Size | 1705 |
| Chip Breaker | G |
| Tolerance Class | M |
| Insert Hand | R |
| Insert Material | Carbide |
