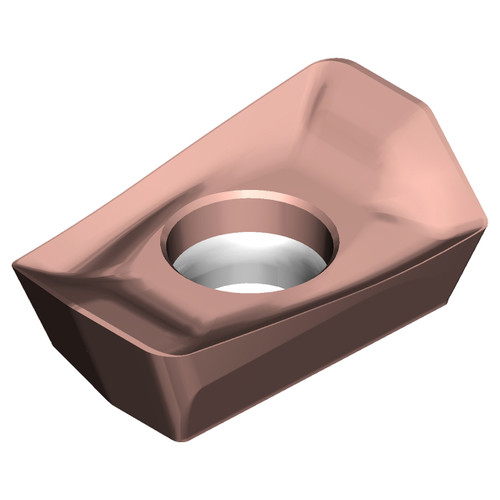

Sumitomo 14U2ADE| AOMT11T302PEER-G-ACU2500 10.00mm Maximum Depth Cut x 0.20mm Radius x 3.60mm Thickness Carbide ACU2500 Coated WEZ Milling Insert

$14.89 $11.91
(You save $2.98)
Brand:
Sumitomo
Insert Style:
AOMT
Insert Size:
11T3
Material:
Carbide
Manufacturer's Grade:
ACU2500
Coating:
ACU2500
Width (Inch):
1/2"
Width (Decimal Inch):
0.5039"
Width (mm):
12.80mm
Thickness (Inch):
1/8"
Thickness (Decimal Inch):
0.1417"
Thickness (mm):
3.60mm
interval quantity:
1
SKU:
23168671
UPC:
Weight:
0.12 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Sumitomo 14U2ADE| AOMT11T302PEER-G-ACU2500 10.00mm Maximum Depth Cut x 0.20mm Radius x 3.60mm Thickness Carbide ACU2500 Coated WEZ Milling Insert

Product Specifications
EDP Number14U2ADE
Product Code-ANSIAOMT11T302PEER-G-ACU2500
Manufacturer Grade IdentificationACU2500
SeriesWEZ
Maximum Depth of Cut (mm)10.00mm
Cutting Edge Length (Decimal Length)0.5039"
Cutting Edge Length (mm)12.80mm
Nose Radius (Decimal Inch)0.0079"
Nose Radius (mm)0.20mm
Insert Thickness (Decimal Inch)0.1417"
Insert Thickness (mm)3.60mm
CoatingACU2500
Coating ProcessPVD
Insert StyleAOMT
Insert SideSingle
Insert Size11T3
Chip BreakerG
Tolerance ClassM
Insert HandR
Insert MaterialCarbide
