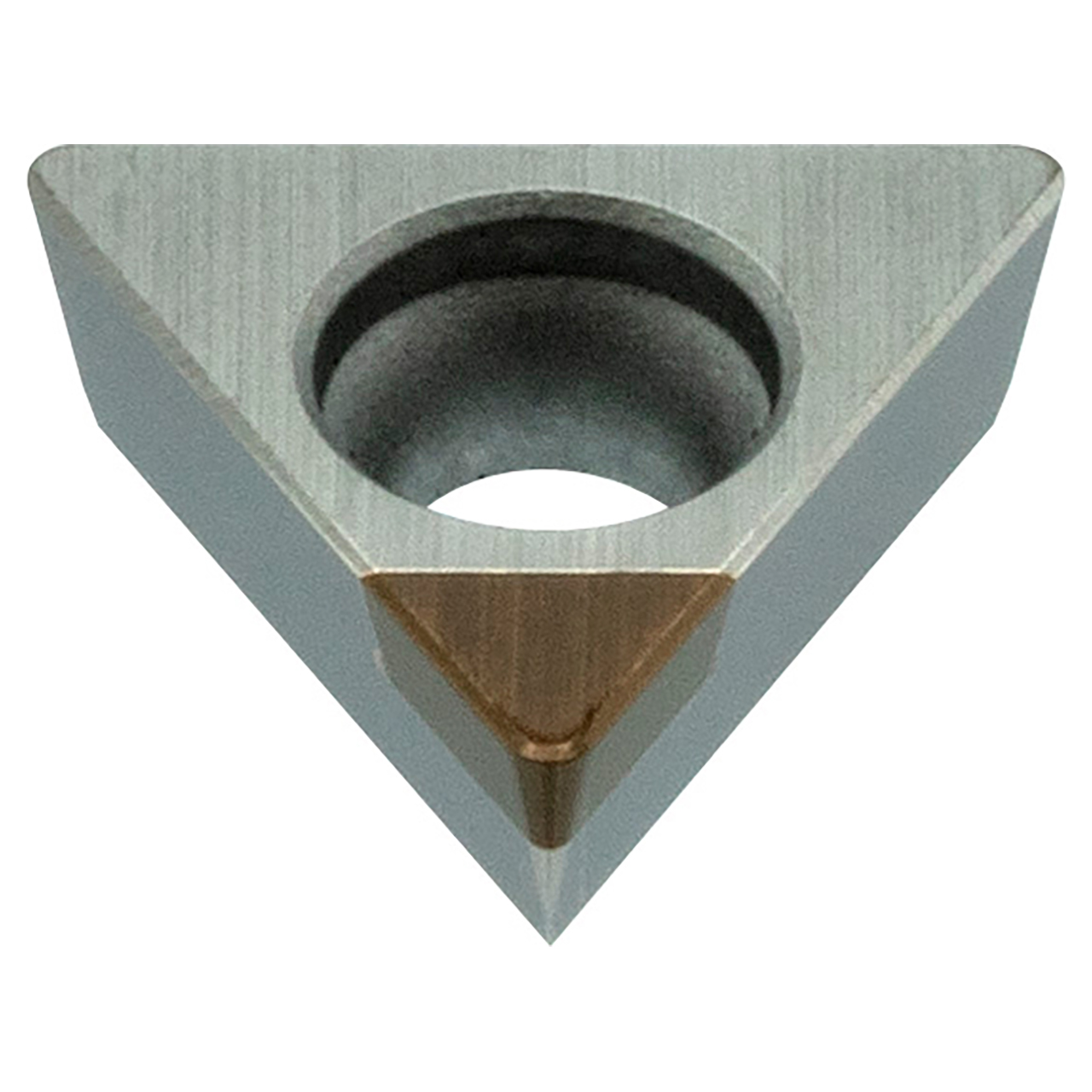

| EDP Number | 16JYDTN |
| Product Code-ANSI | NUTPGA1.81.50.5-BN7000 |
| Product Code-ISO | NU-TPGW090202 |
| Manufacturer Grade Identification | BN7000 |
| Series | BN7000 |
| Effective Length (Inch) | 0.1024" |
| Effective Length (mm) | 2.60mm |
| Nose Radius (Inch) | 0.0079" |
| Nose Radius (mm) | 0.20mm |
| Inscribed Circle Diameter (Inch) | 0.2189" |
| Inscribed Circle Diameter (mm) | 5.56mm |
| Hole Diameter (mm) | 2.80mm |
| Insert Thickness (Inch) | 0.0937" |
| Insert Thickness (mm) | 2.38mm |
| Insert Size | 1.81.50.5 |
| Corner Angle | 60 Degree |
| Relief Angle | 11 Degree |
| Rake Angle | Positive |
| Insert Material | CBN |
| Insert Style | TPGA |
| Tolerance Class | G |
| Coating | Uncoated CBN |
| Insert Holding Method | Screw-On |
| Standard Designation of the Grade, Main Application | Cast Iron, Exotic Alloys, Powdered Metal |
