Product Specifications

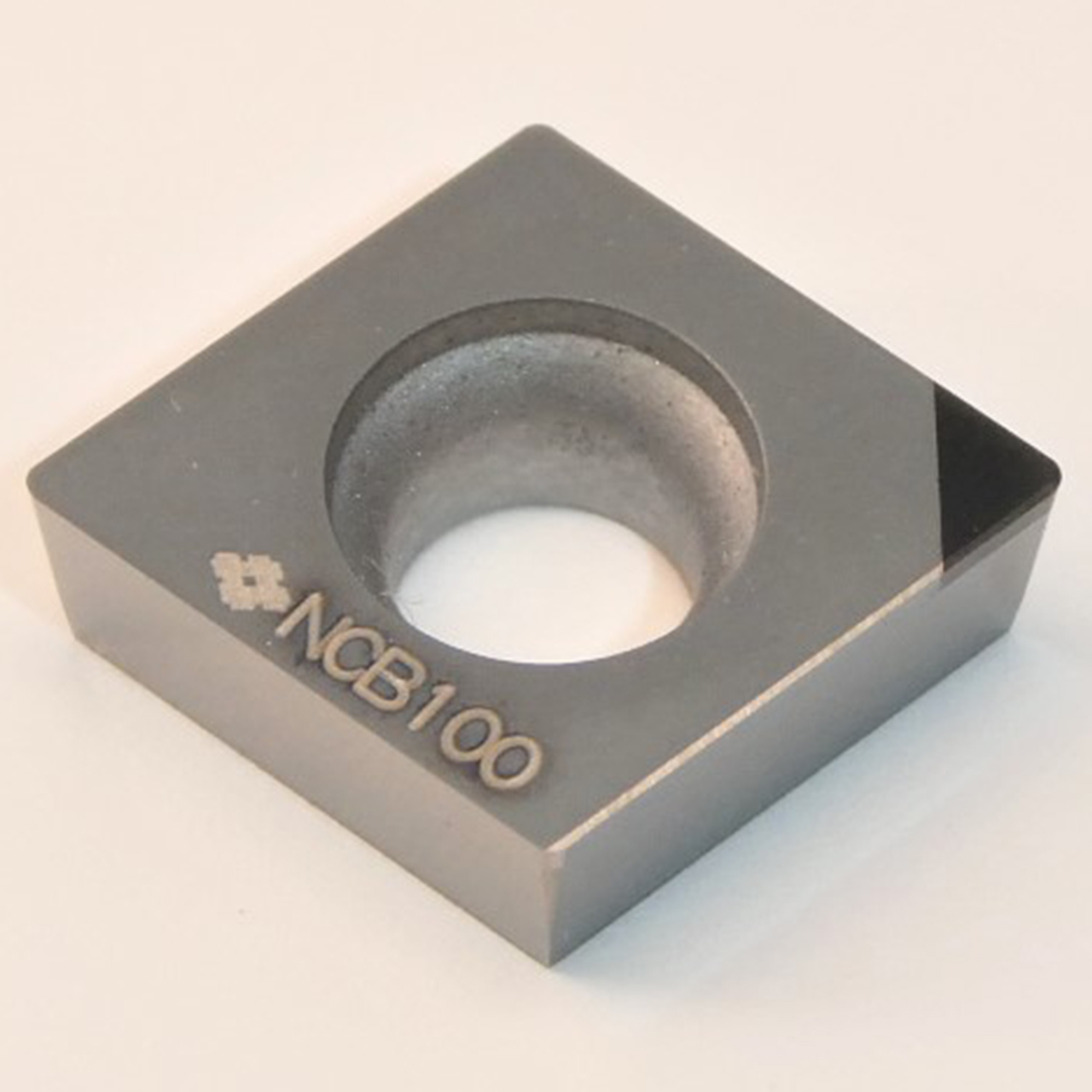

| EDP Number | 16P5FDK |
| Product Code-ANSI | NUCCGA32.51-NCB100 |
| Product Code-ISO | NU-CCGW09T304 |
| Manufacturer Grade Identification | NCB100 |
| Series | NCB100 |
| Effective Length (Inch) | 0.0984" |
| Effective Length (mm) | 2.50mm |
| Nose Radius (Inch) | 0.0157" |
| Nose Radius (mm) | 0.40mm |
| Inscribed Circle Diameter (Inch) | 0.3750" |
| Inscribed Circle Diameter (mm) | 9.525mm |
| Hole Diameter (mm) | 4.40mm |
| Insert Thickness (Inch) | 0.1563" |
| Insert Thickness (mm) | 3.97mm |
| Insert Size | 32.51 |
| Corner Angle | 80 Degree |
| Relief Angle | 7 Degree |
| Rake Angle | Positive |
| Insert Material | CBN |
| Insert Style | CCGW |
| Tolerance Class | G |
| Coating | Uncoated Binderless CBN |
| Insert Holding Method | Pin & Clamp |
| Standard Designation of the Grade, Main Application | Exotic Alloy |
