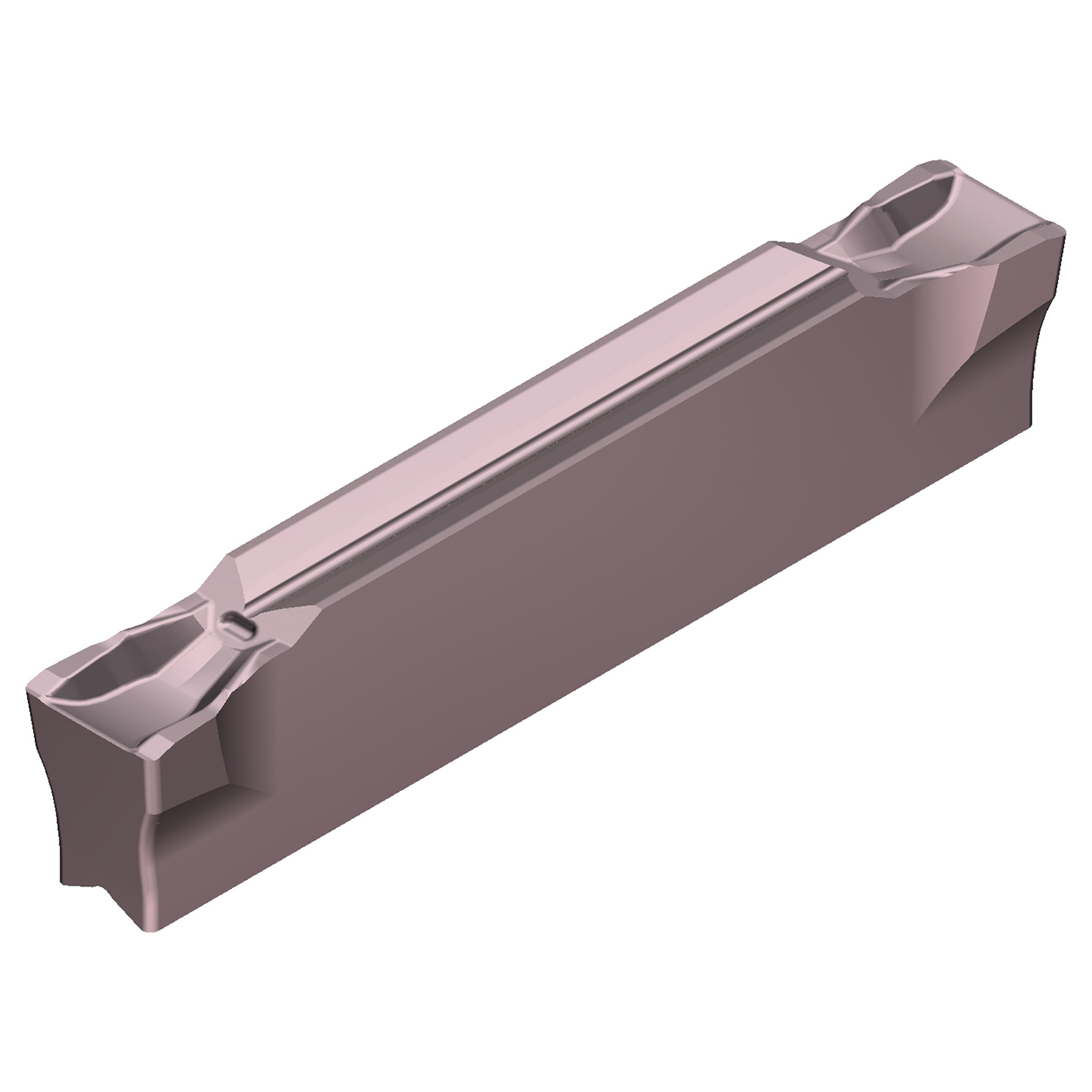

Sumitomo 18HMW14 | GCMN6250R1.0-GG-AC530U 0.2500" Cutting Width x 0.0156" Radius x 0.1770" Thickness Super ZX Coat Coated Carbide GND Grooving Insert

$34.35 $27.48
(You save $6.87)
Brand:
Sumitomo
Material:
Carbide
Cutting Width (Inch):
1/4"
Cutting Width (Decimal Inch):
0.2500"
Cutting Width (mm):
6.35mm
Maximum Depth of Cut (Inch):
29/32"
Maximum Depth of Cut (Decimal Inch):
0.9060"
Maximum Depth of Cut (mm):
23.00mm
Finish/Coating:
Super ZX Coat
Insert Hand:
N
Cutting Height (Inch):
3/16"
Cutting Height (Decimal Inch):
0.1770"
Cutting Height (mm):
4.50mm
interval quantity:
1
SKU:
23172505
UPC:
Weight:
0.12 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Sumitomo 18HMW14 | GCMN6250R1.0-GG-AC530U 0.2500" Cutting Width x 0.0156" Radius x 0.1770" Thickness Super ZX Coat Coated Carbide GND Grooving Insert

Related Products


Product Specifications
EDP Number18HMW14
Product Code - ANSIGCMN6250R1.0-GG-AC530U
Manufacturer Grade IdentificationAC530U
SeriesGND
Maximum Depth of Cut (Decimal Inch)0.9060"
Maximum Depth of Cut (mm)23.00mm
Cutting Width (Decimal Inch)0.2500"
Cutting Width (mm)6.35mm
Height (Decimal Inch)0.1770"
Nose Radius (Decimal Inch)0.0156"
Nose Radius (mm)0.40mm
Insert Thickness (Decimal Inch)0.1770"
Insert Thickness (mm)4.50mm
Relief Angle7 Degree
CoatingSuper ZX Coat
Coating ProcessPVD
Standard Designation of the Grade, Main ApplicationP, M, S
Primary Workpiece MaterialP, M, S
Secondary Workpiece MaterialP, M, S
Chip BreakerGG
Insert HandN
Insert MaterialCarbide
