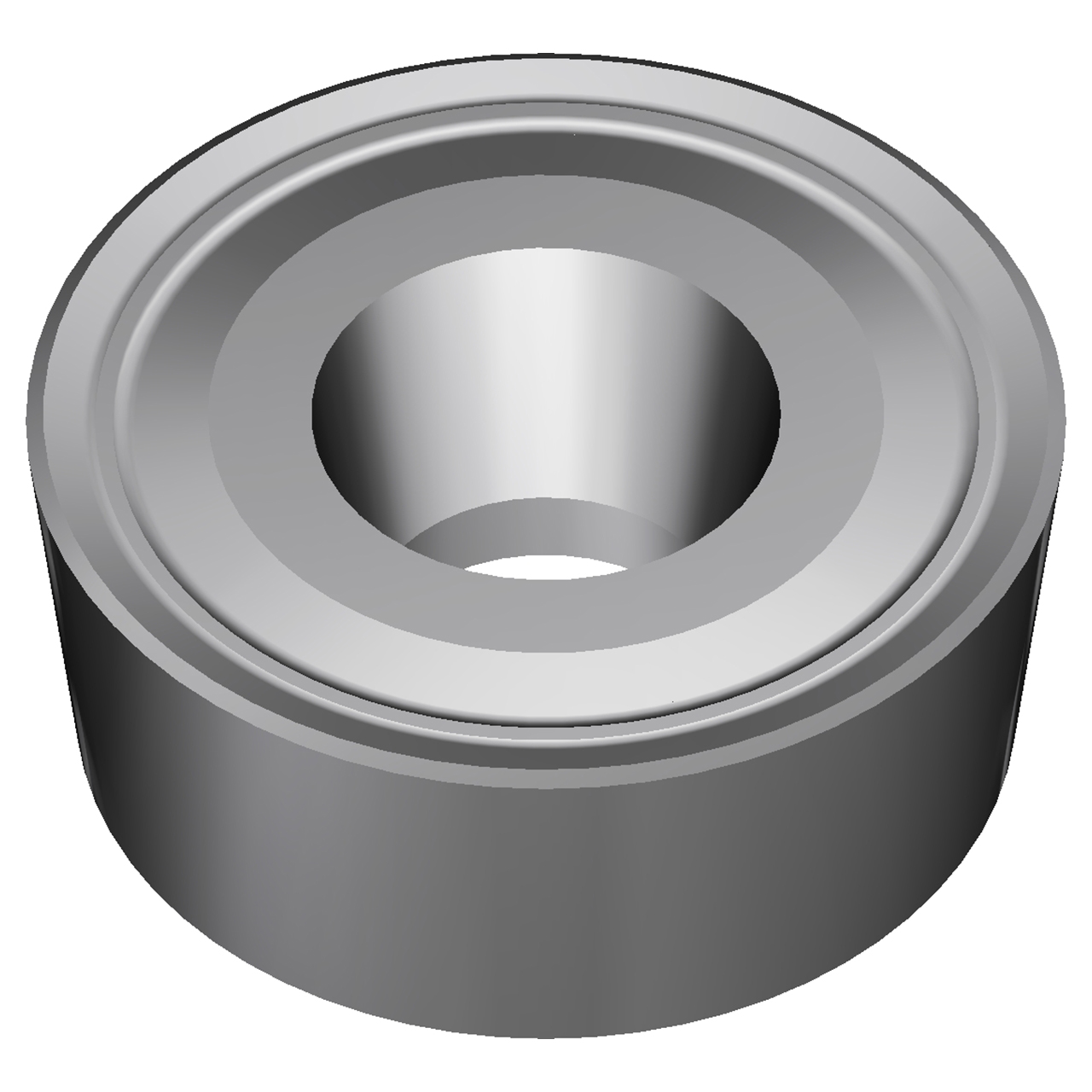

Sumitomo 19T3314 | RCMX250700-AC8035P 0.9843" Circle Diameter x 7.20mm Hole Diameter x 0.3126 Thickness Absotech Coated Carbide Turning Insert

$59.05 $42.18
(You save $16.87)
Brand:
Sumitomo
Insert Style:
RCMX
Insert Size:
250700
Material:
Carbide
Inscribed Circle (Inch):
31/32"
Inscribed Circle (Decimal Inch):
0.9843"
Inscribed Circle (mm):
25.00mm
Thickness (Inch):
5/16"
Thickness (Decimal Inch):
0.3126"
Thickness (mm):
7.94mm
Manufacturer's Grade:
AC8035P
interval quantity:
2
SKU:
23179953
UPC:
Weight:
0.55 LBS
Minimum Purchase:
2 units
Shipping:
Calculated at Checkout
Sumitomo 19T3314 | RCMX250700-AC8035P 0.9843" Circle Diameter x 7.20mm Hole Diameter x 0.3126 Thickness Absotech Coated Carbide Turning Insert

Product Specifications
EDP Number19T3314
Product Code-ANSIRCMX250700-AC8035P
Product Code-ISORCMX2507M0N-RP
Manufacturer Grade IdentificationAC8035P
SeriesAC8000P
Inscribed Circle Diameter (Decimal Inch)0.9843"
Inscribed Circle Diameter (mm)25.00mm
Hole Diameter (mm)7.20mm
Insert Thickness (Decimal Inch)0.3126"
Insert Thickness (mm)7.94mm
Relief Angle7 Degree
Rake AnglePositive
Insert MaterialCarbide
Tolerance ClassM
Chip BreakerERP
Insert StyleRCMX
Primary Workpiece MaterialSteel
CoatingAbsotech
Coating ProcessCVD
Standard Designation of the Grade, Main ApplicationP35, P25, P40
Insert Holding MethodScrew-On
