| EDP Number | 1PGZ030 |

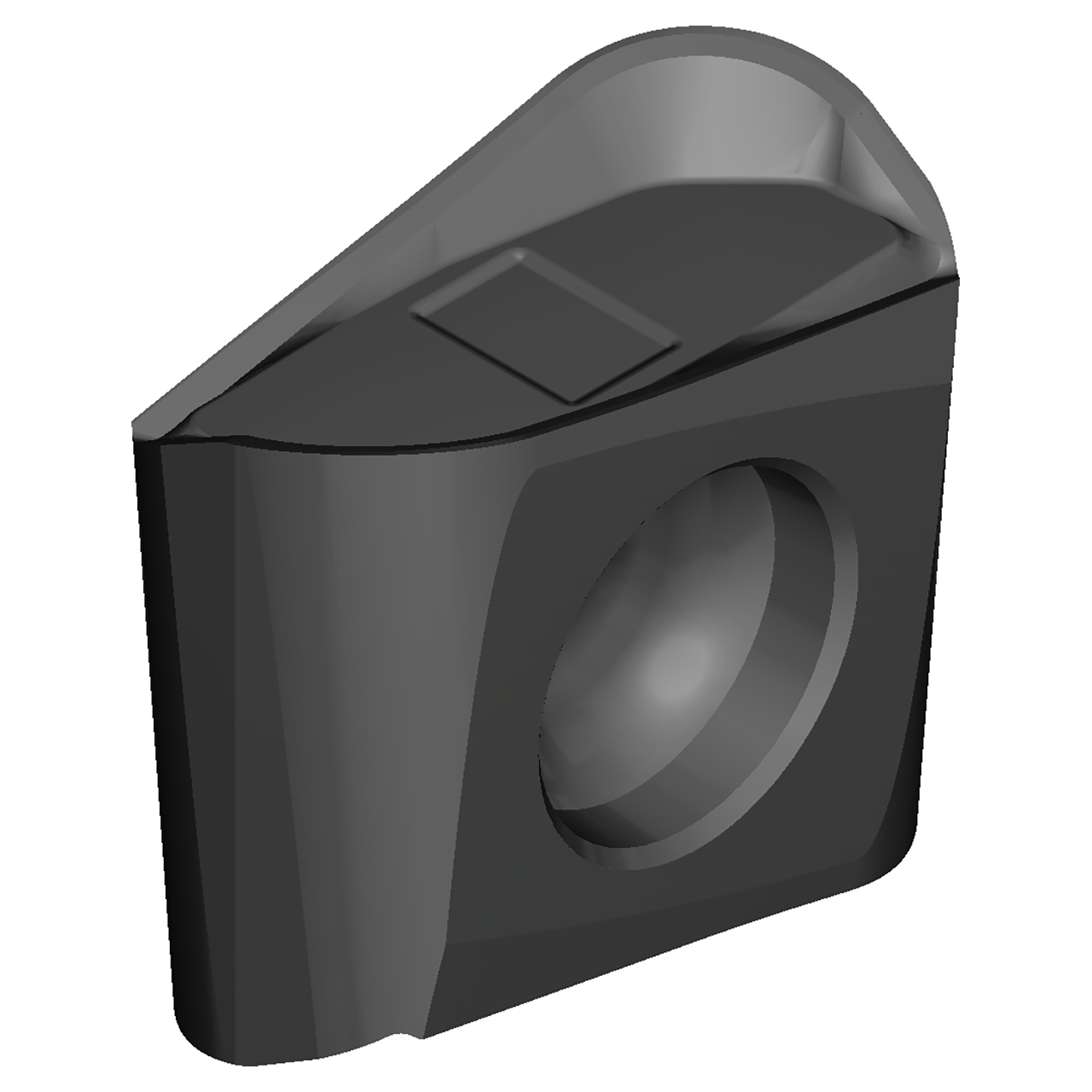

| Product Code-ANSI | LNEX130612PNER-G-ACP100 |
| Manufacturer Grade Identification | ACP100 |
| Series | TSX |
| Maximum Depth of Cut (mm) | 12.00mm |
| Cutting Edge Length (Decimal Length) | 0.5118" |
| Cutting Edge Length (mm) | 13.00mm |
| Nose Radius (Decimal Inch) | 0.0472" |
| Nose Radius (mm) | 1.20mm |
| Insert Thickness (Decimal Inch) | 0.4252" |
| Insert Thickness (mm) | 10.80mm |
| Coating | ACP100 |
| Coating Process | CVD |
| Insert Style | LNEX |
| Insert Side | Double |
| Insert Size | 130612 |
| Chip Breaker | G |
| Tolerance Class | E |
| Insert Hand | R |
| Insert Material | Carbide |
