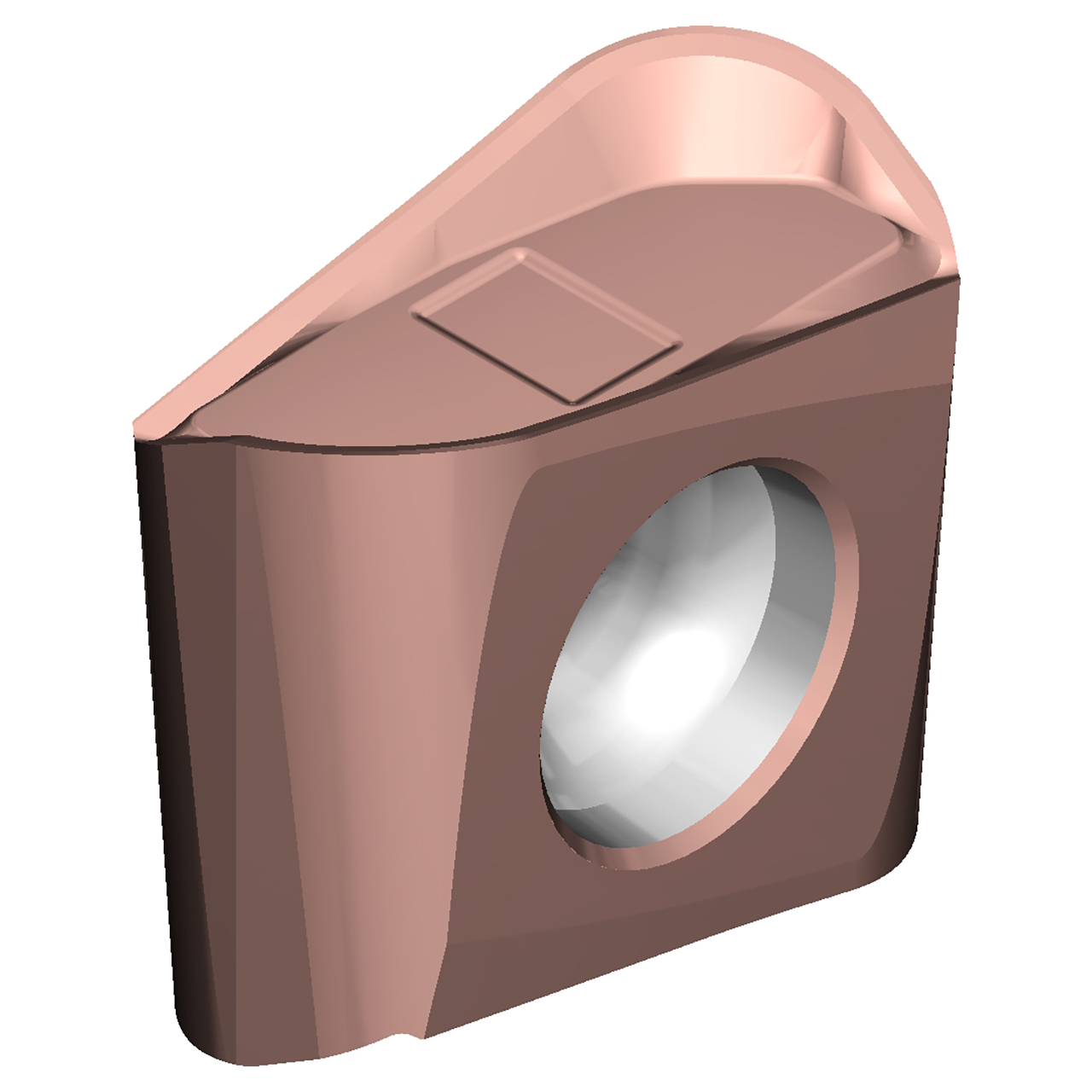

Sumitomo 1PHD030| LNEX130612PNER-G-ACK300 12.00mm Maximum Depth Cut x 1.20mm Radius x 10.80mm Thickness Carbide ACK300 Coated TSX Milling Insert

Sumitomo 1PHD030| LNEX130612PNER-G-ACK300 12.00mm Maximum Depth Cut x 1.20mm Radius x 10.80mm Thickness Carbide ACK300 Coated TSX Milling Insert

SKU: 23184570 Weight: 0.50 LBS Minimum Purchase: 10 unit
UPC:
$20.74
Total Price: $20.74
Shipping: Calculated at Checkout

About This Item


Product Specifications
EDP Number1PHD030
Product Code-ANSILNEX130612PNER-G-ACK300
Manufacturer Grade IdentificationACK300
SeriesTSX
Maximum Depth of Cut (mm)12.00mm
Cutting Edge Length (Decimal Length)0.5118"
Cutting Edge Length (mm)13.00mm
Nose Radius (Decimal Inch)0.0472"
Nose Radius (mm)1.20mm
Insert Thickness (Decimal Inch)0.4252"
Insert Thickness (mm)10.80mm
CoatingACK300
Coating ProcessPVD
Insert StyleLNEX
Insert SideDouble
Insert Size130612
Chip BreakerG
Tolerance ClassE
Insert HandR
Insert MaterialCarbide
