Product Specifications

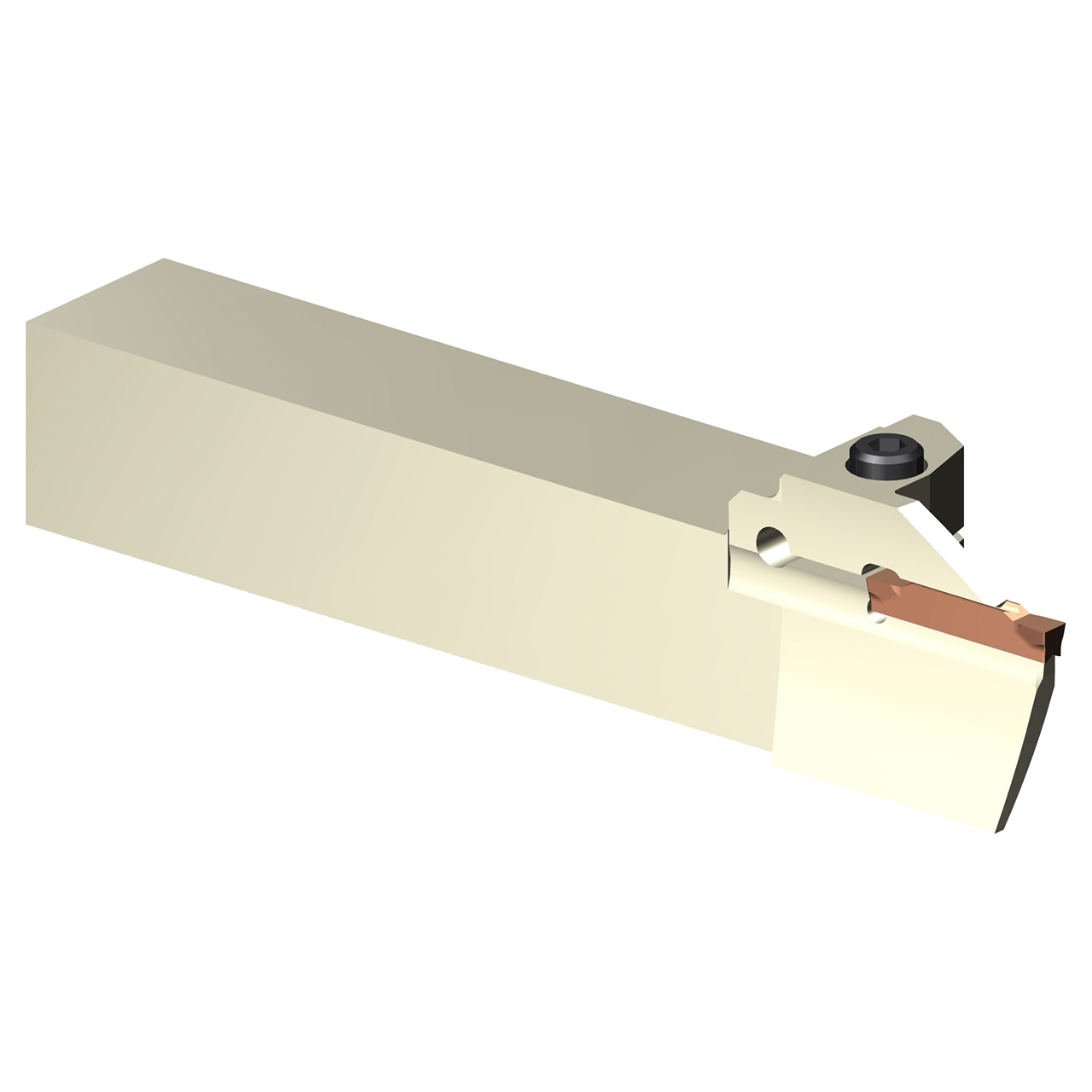

| EDP Number | 2600AQT |
| Product Code-ANSI | GNDFL2020K-623-280 |
| Series | GND |
| Insert Width (Inch) | 0.2362" |
| Insert Width (mm) | 6.00mm |
| Head Length (mm) | 46.60mm |
| Maximum Depth of Cut (Inch) | 0.9055" |
| Maximum Depth of Cut (mm) | 23.00mm |
| Maximum Workpiece Diameter (Inch) | 39.3701" |
| Maximum Workpiece Diameter (mm) | 1000.00mm |
| Shank Width (mm) | 20.00mm |
| Shank Height (mm) | 20.00mm |
| Overall Length (mm) | 125.00mm |
| Insert Holding Method | Clamp |
| Hand | Left Hand |
| Tool Holder Style | Face Grooving Tool |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Sumitomo
Hand of Holder:
Left Hand
Maximum Depth of Cut (Inch):
29/32"
Maximum Depth of Cut (Decimal Inch):
0.9055"
Maximum Depth of Cut (mm):
23.00mm
Maximum Workpiece Diameter (Inch):
39-3/8"
Maximum Workpiece Diameter (Decimal Inch):
39.3701"
Maximum Workpiece Diameter (mm):
1000.00mm
Series:
GND
Toolholder Style:
Face Grooving Tool
Overall Length (Inch):
4-29/32"
Overall Length (Decimal Inch):
4.9213"
Overall Length (mm):
125.00mm
Shank Width/Diameter (Inch):
25/32"
Shank Width/Diameter (Decimal Inch):
0.7874"
Shank Width/Diameter (mm):
20.00mm
Shank Height (Inch):
25/32"
interval quantity:
1
Ships:
From California in 1-2 Days
