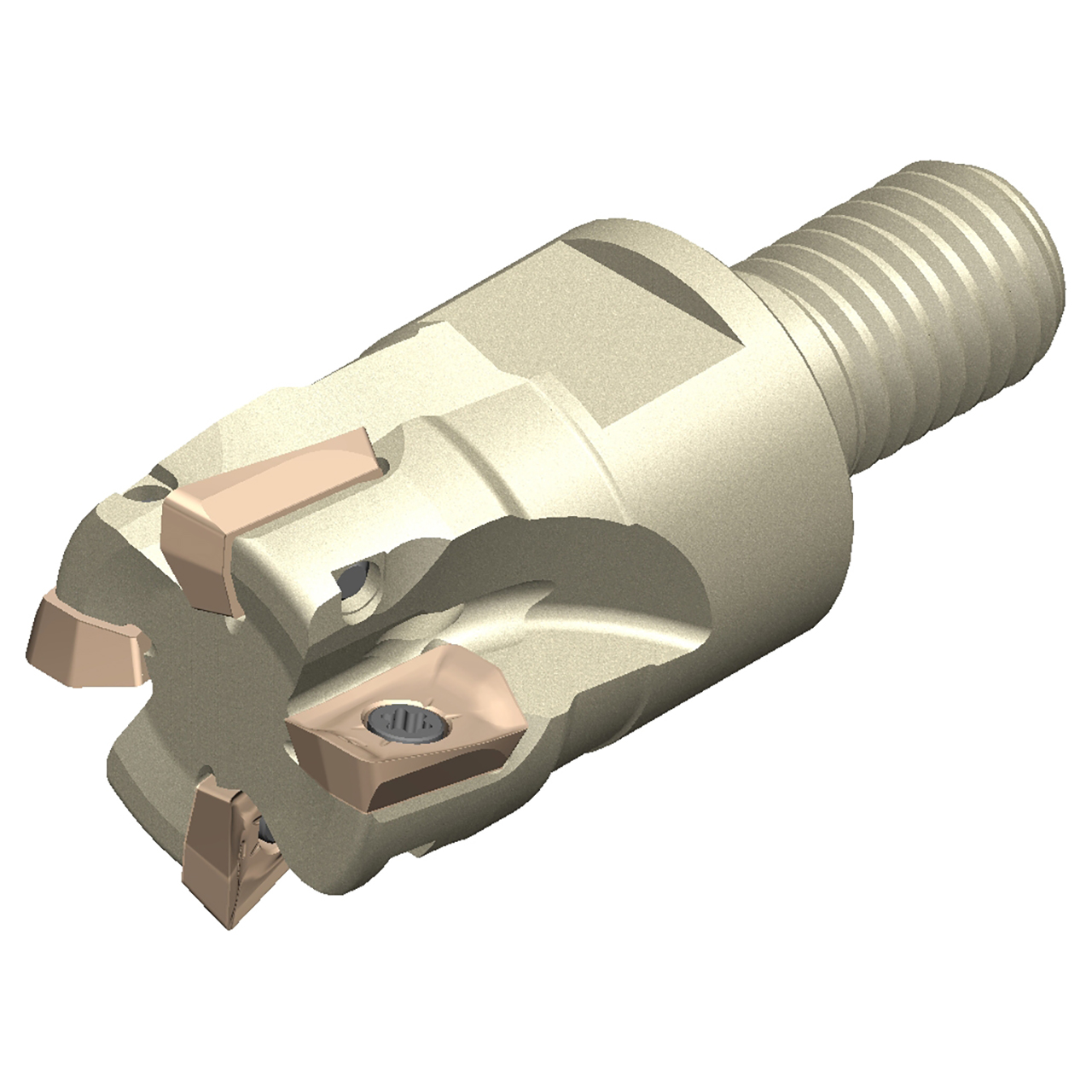

Product Specifications
| EDP Number | 2900W6E |
| Product Code-ANSI | WEZ21000M12Z4 |
| Maximum Depth of Cut (Decimal Inch) | 0.3940" |
| Cutting Diameter (Decimal Inch) | 1.0000" |
| Overall Length (Decimal Inch) | 2.2050" |
| Number of Inserts | 4 |
| Mounting Screw Hole Size At Machine End | M12 |
| Hand | R |
| Insert Compatibility | AOMT11, AOET11 |
| Cutter Style | WEZ |
| Series | WEZ |
| Coolant Through | Yes |
| Tool Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Sumitomo
Cutting Diameter (Inch):
1"
Cutting Diameter (Decimal Inch):
1.0000"
Cutting Diameter (mm):
25.40mm
Overall Length (Inch):
2-3/16"
Overall Length (Decimal Inch):
2.2050"
Overall Length (mm):
56.01mm
Series:
WEZ
Through Coolant:
Yes
interval quantity:
1
Ships:
From California in 1-2 Days
