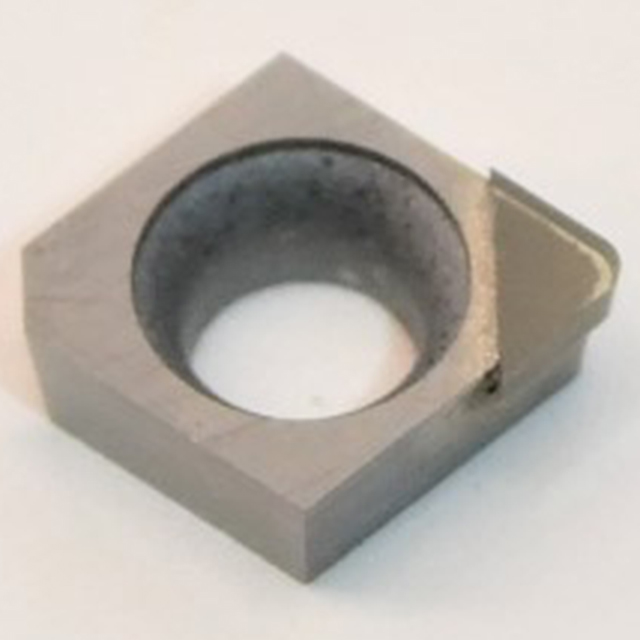

| EDP Number | 332T001 |
| Product Code-ANSI | CCMW03X102RH-NPD10 |
| Product Code-ISO | CCMW03X102RH |
| Manufacturer Grade Identification | NPD10 |
| Series | NPD10 |
| Effective Length (Inch) | 0.0551" |
| Effective Length (mm) | 1.40mm |
| Nose Radius (Inch) | 0.0079" |
| Nose Radius (mm) | 0.20mm |
| Inscribed Circle Diameter (Inch) | 0.1378" |
| Inscribed Circle Diameter (mm) | 3.50mm |
| Hole Diameter (mm) | 1.90mm |
| Insert Thickness (Inch) | 0.0551" |
| Insert Thickness (mm) | 1.40mm |
| Insert Size | 03X102 |
| Corner Angle | 80 Degree |
| Relief Angle | 7 Degree |
| Rake Angle | Positive |
| Insert Material | PCD |
| Insert Style | CCMW |
| Tolerance Class | M |
| Coating | Uncoated Binderless PCD |
| Insert Holding Method | Screw-On |
| Standard Designation of the Grade, Main Application | Hard Brittle Material |
