Product Specifications

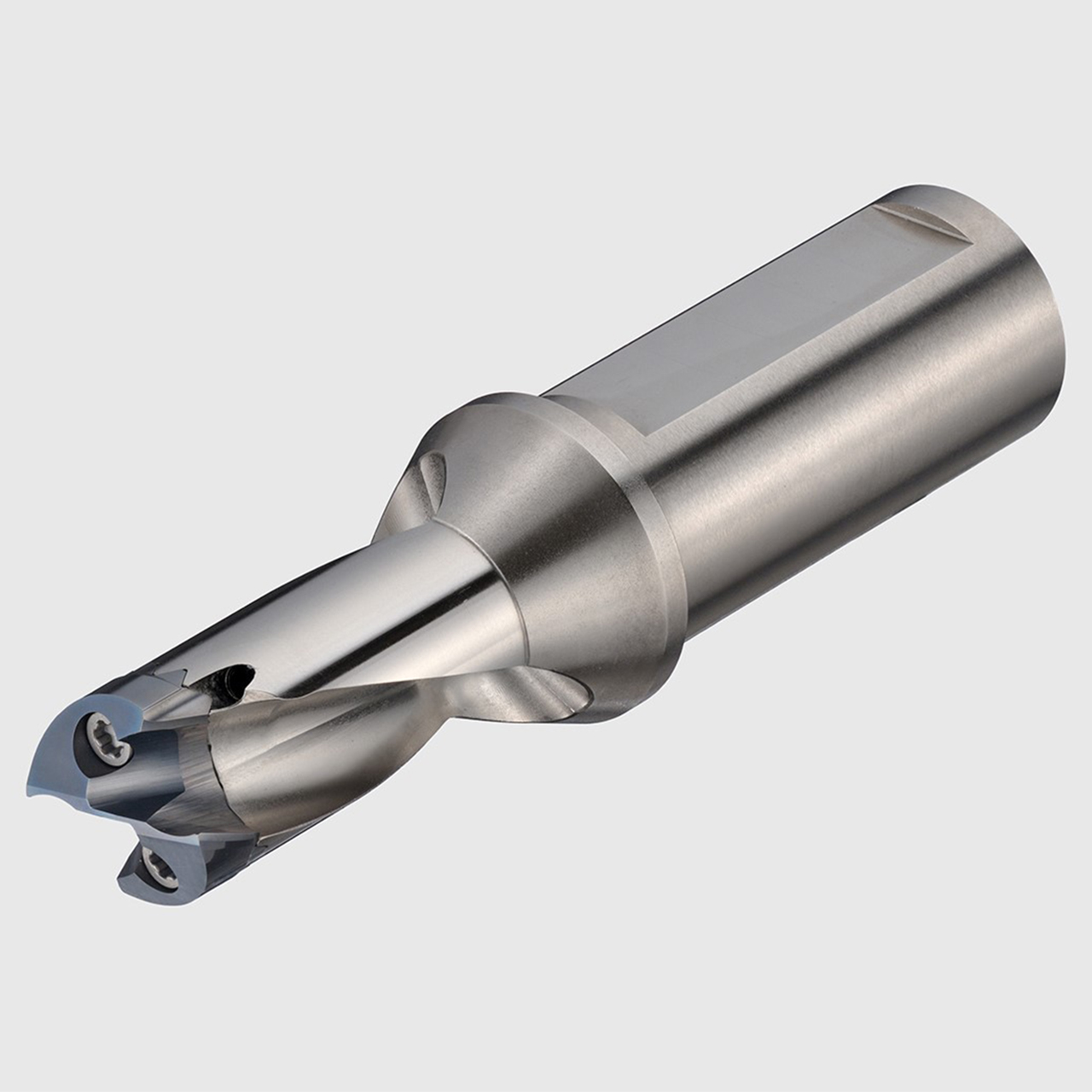

| EDP Number | 5L00644 |
| Product Code-Sumitomo | SMDH140-1.5DF |
| Maximum Drill Depth (mm) | 29.00mm |
| Maximum Drill Diameter (mm) | 14.50mm |
| Minimum Drill Diameter (mm) | 13.50mm |
| Shank Diameter (mm) | 16.00mm |
| Shank Length (mm) | 48.00mm |
| Overall Length (mm) | 96.30mm |
| Series | SMD Replaceable Tip Drills |
| Hand | Right Hand |
| Coolant Through | Coolant Through |
| Shank Type | Flatted |
| Tool Material | Steel |
| Number of Tips | 1 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Sumitomo
Series:
SMD Replaceable Tip Drills
Minimum Drill Diameter (Inch):
17/32"
Minimum Drill Diameter (Decimal Inch):
0.5315"
Minimum Drill Diameter (mm):
13.50mm
Maximum Drill Diameter (Inch):
9/16"
Maximum Drill Diameter (Decimal Inch):
0.5709"
Maximum Drill Diameter (mm):
14.50mm
Maximum Drill Depth (Inch):
1-5/32"
Maximum Drill Depth (Decimal Inch):
1.1417"
Maximum Drill Depth (mm):
29.00mm
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6299"
Shank Diameter (mm):
16.00mm
Through Coolant:
Coolant Through
interval quantity:
1
Ships:
From California in 1-2 Days
